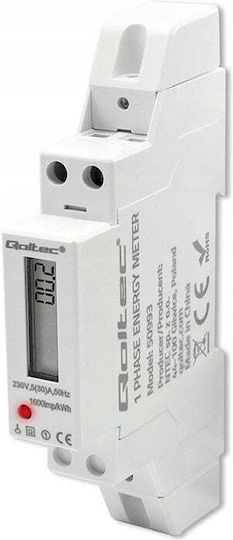

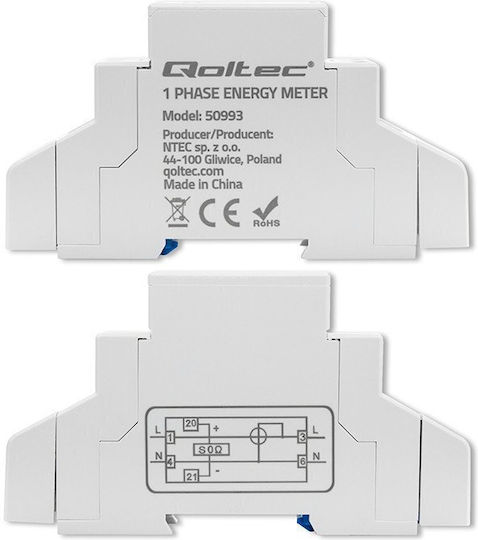

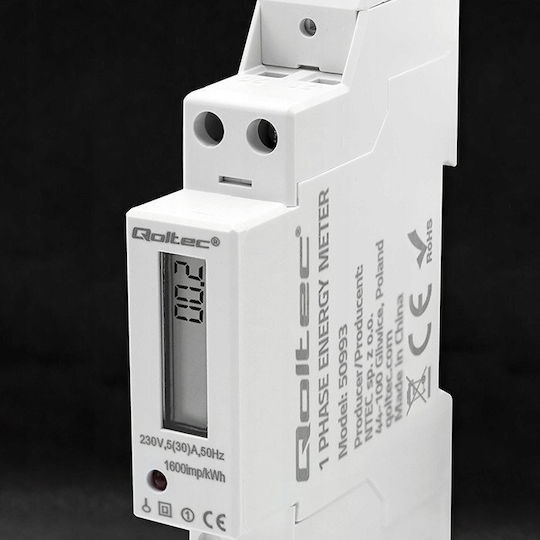

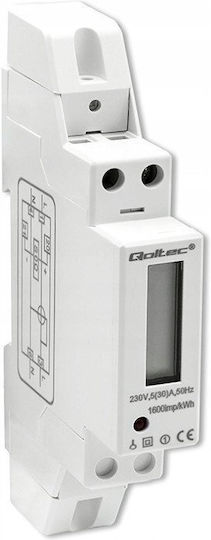

The Qoltec energy meter measures the electricity consumption of single-phase loads powered by 230 V AC at 50 Hz in real time. Consumption is displayed in kWh on the LCD, while the indicator LED flashes according to the energy consumed, at a constant rate of 1,600 imp/kWh.

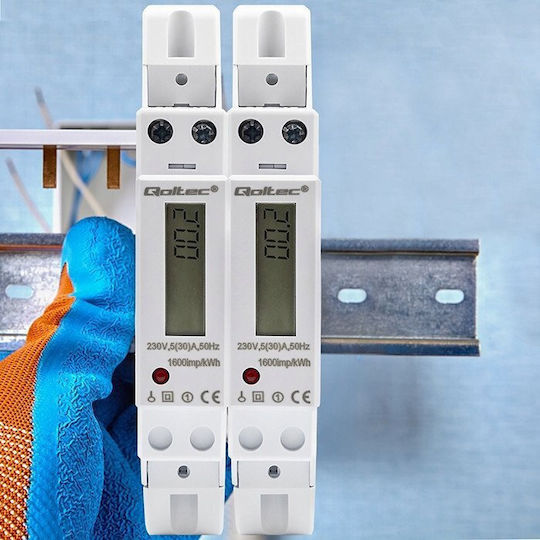

Measurement is unidirectional and is carried out regardless of the direction of energy flow. The meter is mounted on a TH35 DIN rail and can be used in residential installations, building electrical panels and industrial premises.
- Type: Energy meter
- Display type: Digital
- Installation type: TH35 DIN rail
- Number of phases: Single-phase
- Measurement direction: Unidirectional
- Operating voltage: 230 V
- Frequency: 50 Hz
- Basic current: 5 A
- Maximum current: 30 A
- Unit of measurement: kWh
- Pulse constant: 1,600 imp/kWh
- Accuracy: Class 1.0
- Standards: IEC 62053-21, DIN EN50022
- Operating temperature: From -20 °C to +55 °C
- Colour: White
- Dimensions: 63 × 17 × 115 mm
- Weight: 74 g
- Package contents: Energy meter, user manual
- Type
- Energy Analyzer
- Display Type
- Digital
- Installation Type
- Rail
- Number of Phases
- Single-phase
- Maximum Current
- 30 A
