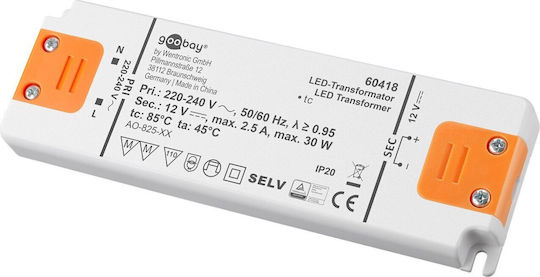

The LED power supply provides constant voltage (CV) for LEDs, offering a high degree of flexibility, especially when connecting different lengths of LED strips. It is the ideal solution for LED modules with constant voltage and their own series resistor.
- Input: 0.75 mm²
- Number of inputs: 2
- Input voltage range: 220 - 240 (AC) V
- Output: 0.75 mm²
- Maximum current: 2500 mA / 2.5 A
- Number of outputs: 2
- Output voltage (DC): 12 V (DC)
- Device class: II
- Markings: WEEE, CE
- Approved by: TÜV Rheinland
- Height: 14 mm
- Length: 154 mm
- Manufacturer: Goobay
- Maximum operating temperature: 45 °C
- Minimum operating temperature: -20 °C
- Protection rating: IP20
- Weight: 92 g
- Width: 50 mm
- Maximum output: 30 W
- No-load power consumption: 0.5 W
- CAS number: 7439-92-1
- Chemical substance: Pb
- SCIP number: 3b20efc6-ec20-4996-aef3-d4841eec155e
- Input type: Screw clamp
- Output type: Screw clamp
- Applications: Furniture installation
- Color: white-orange
- Unique feature: Constant voltage (for parallel connection)
- Packaging: 1 piece in cardboard box
- Dimming capability: not dimmable
Dimensions
- Output (DC)
- 12 V
- Power
- 30 W
- Waterproofing
- IP20
- Features
- Dimmable
Smart Features
- Smart Ecosystem
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
