The Shelly Wall Display X2 is a control panel for lighting and automation, featuring a 6.95-inch color touchscreen and a built-in 5 A relay. It works with the Shelly Smart Control app and Home Assistant, and connects directly via Wi-Fi or Bluetooth without an additional hub. With the included Shelly BLU H&T sensor, it functions as a local thermostat and allows you to monitor temperature and humidity.

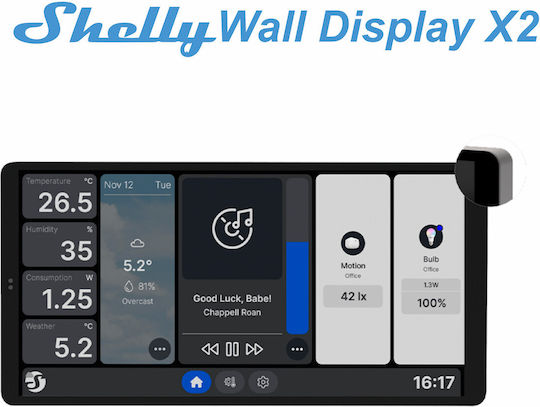

The home screen can display up to 6 devices or scenes, while gesture control and landscape and portrait orientations adapt operation to the installation conditions. It supports control of devices, groups, and scenes, schedules and automations, as well as energy consumption monitoring when used with Shelly PM devices. The built-in light, humidity, temperature, and proximity sensors, microphone, and G sensor can be used in automation scenes. It can also function as a Bluetooth gateway for other BLE devices and connect to Bluetooth speakers or a Sonos system.
- Type: Standard
- Installation: Wall-mounted, in a wall box
- Number of switches: Double
- Design: Complete unit
- Function: Lighting
- Color: Silver
- Connectivity: Wi-Fi, Bluetooth
- Display: 6.95-inch color touchscreen, 5-point capacitive
- Relay: Built-in, 5 A
- Maximum switching voltage: 230 VAC
- Power supply: 230 VAC, 50/60 Hz or USB-C 5 V DC, 1 A
- Power consumption: < 1 W
- Sensors: Ambient temperature, humidity, light, proximity, and G
- Microphone: Built-in
- Speaker: Built-in, 0.8 W
- Support: Shelly Smart Control, Home Assistant, MQTT, and webhooks
- Number of schedules: 20
- Wi-Fi: 802.11 b/g/n
- Wi-Fi range: Up to 30 m indoors and 50 m outdoors
- Bluetooth: 5.0
- Bluetooth range: Up to 10 m indoors and 30 m outdoors
- Dimensions: 87 x 178 x 33 mm
- Weight: 256 g
- Enclosure material: Plastic, aluminum, and glass
- Operating temperature: -20 °C to 40 °C
- Operating humidity: 30% to 70% RH
Specifications
- Placement
- Wall-mounted
- Switch Type
- Complete
- Switch Type
- Basic
- Number of Switches
- Two-Way
- Mode
- Lighting
- Colour
- Silver
Functions
- Aller Retour
- No
- Medium
- No
- Illuminated
- No
- Waterproof
- No
- Battery-powered
- Yes
Smart Attributes
- Connectivity
- Wi-Fi, Bluetooth
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
