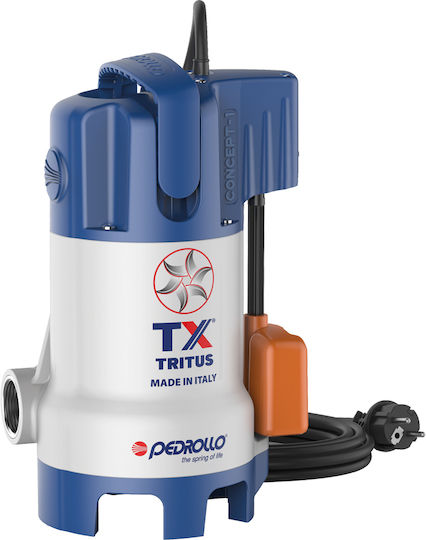

Pedrollo TRITUS-TX Single-phase Pump Waste Water / Sewage 0.75hp 134479
Submersible Water Pumps

Pedrollo TRITUS-TX Single-phase Pump Waste Water / Sewage 0.75hp 134479

Key features:

  • Power (kW / Hp): 0.55 / 0.75
  • Voltage (Volt-Hz): 230V - 50Hz
  • Maximum head (m): 12
  • Maximum flow rate (m3/h): 5.4
  • Outlet diameter Φ (Inch-mm): 1 1/4"
See full description

Top specs

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Single-Phase

    Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
  • See all
314 80 €
315 Coins 315 Coins
Delivery Thu, 01 Oct - Mon, 05 Oct
Free shipping cost
Sent from Greece
From jadevertools
Greece
20+ pieces
See Water Pumps on the page of jadevertools
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

The TRITUS-TX grinder pump by PEDROLLO is equipped with a robust, hardened stainless steel blade, expertly designed for cutting solids and fibers found in domestic wastewater and sewage. It includes a compact, integrated magnetic float switch with a vertical sliding mechanism. This innovative design ensures maximum electrical safety while also facilitating operation in confined spaces, requiring only 220 mm distance from the wall of the sump.

Specifications

  • Brand: PEDROLLO
  • Pump Type: Sewage - Submersible with Grinder
  • Power (kW / Hp): 0.55 / 0.75
  • Voltage (Volt-Hz): 230V - 50Hz
  • Maximum Head (m): 12
  • Maximum Flow Rate (m3/h): 5.4
  • Outlet Diameter Φ (Inch-mm): 1 1/4" - 31.75mm
  • Motor Body Material: Technopolymer
  • Pump Body Material: Technopolymer
  • Impeller Material: Noryl
  • Grinder Material: Stainless Steel AISI 440C
  • Bottom-to-Top Drainage Capability (mm): 35
  • Maximum Submersion Depth (m): 5
  • Cable Length (m): 5
  • Float Switch: Yes (vertical)
  • Grinder: Yes
  • Pumped Liquid Temperature (°C): 0 +40 °C
  • Weight (kg): 7

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
0.75 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
562.5 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
Yes

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
1 1/4"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Particle Size
31.75 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
