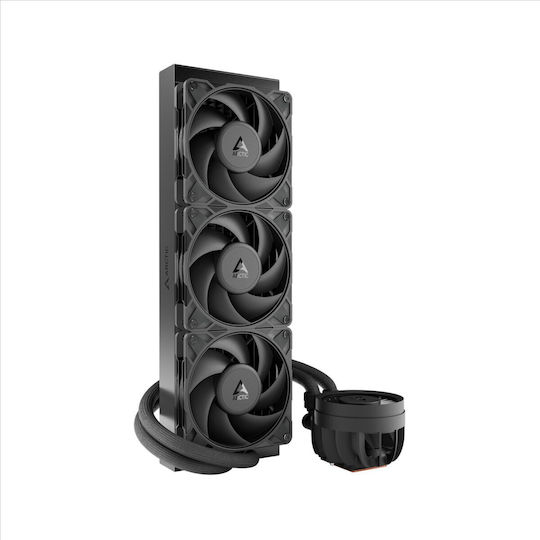

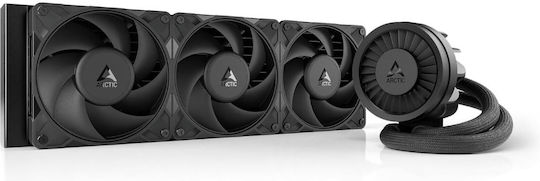

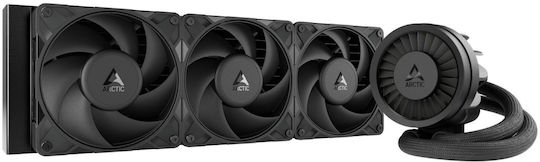

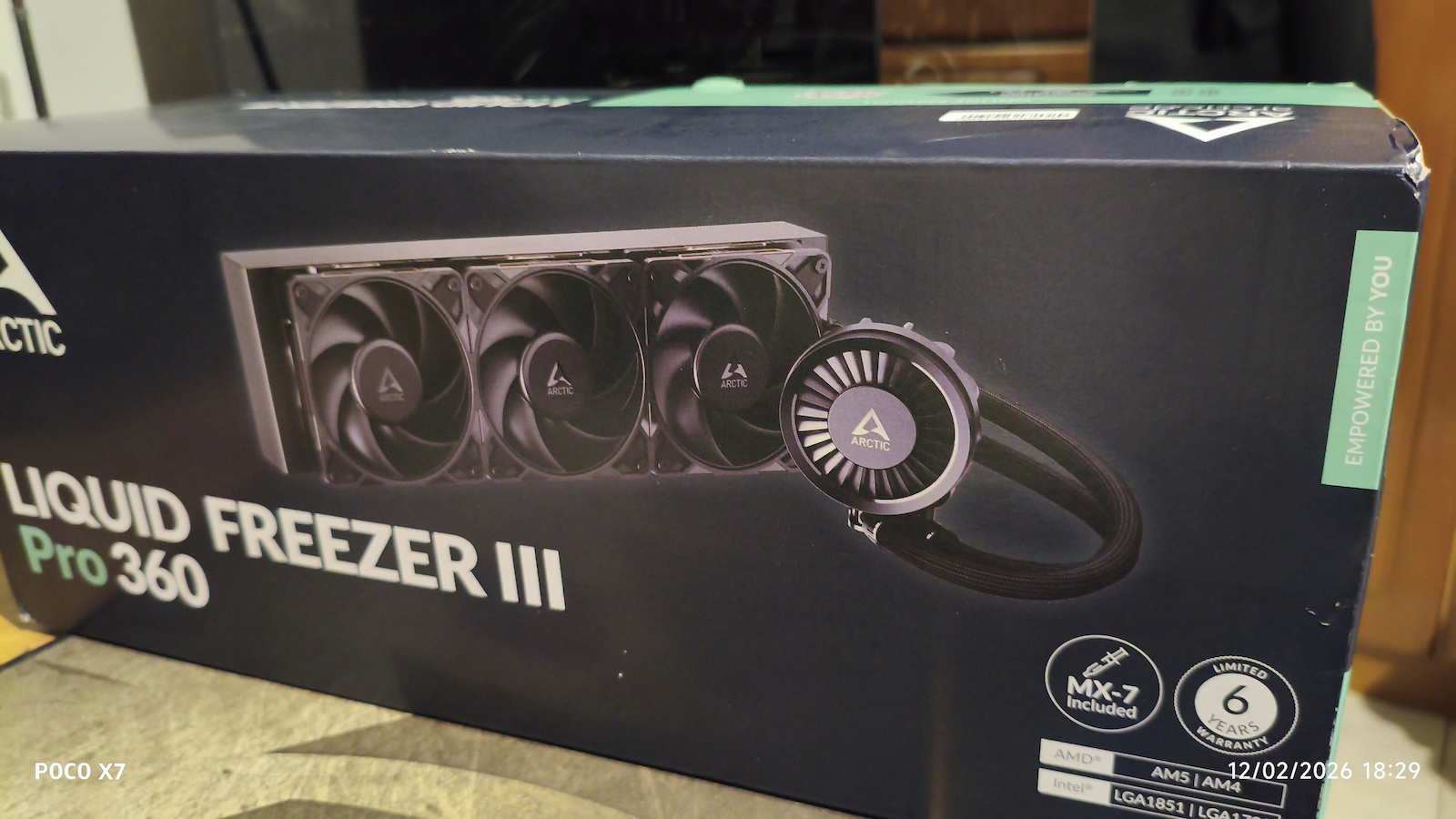

It is an excellent cooler and can maintain very good temperatures.

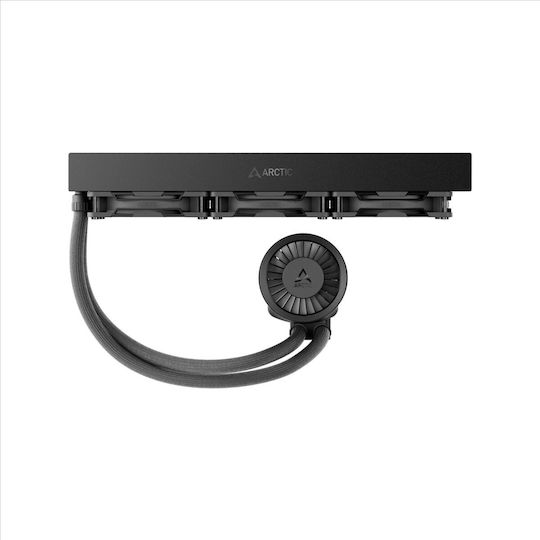

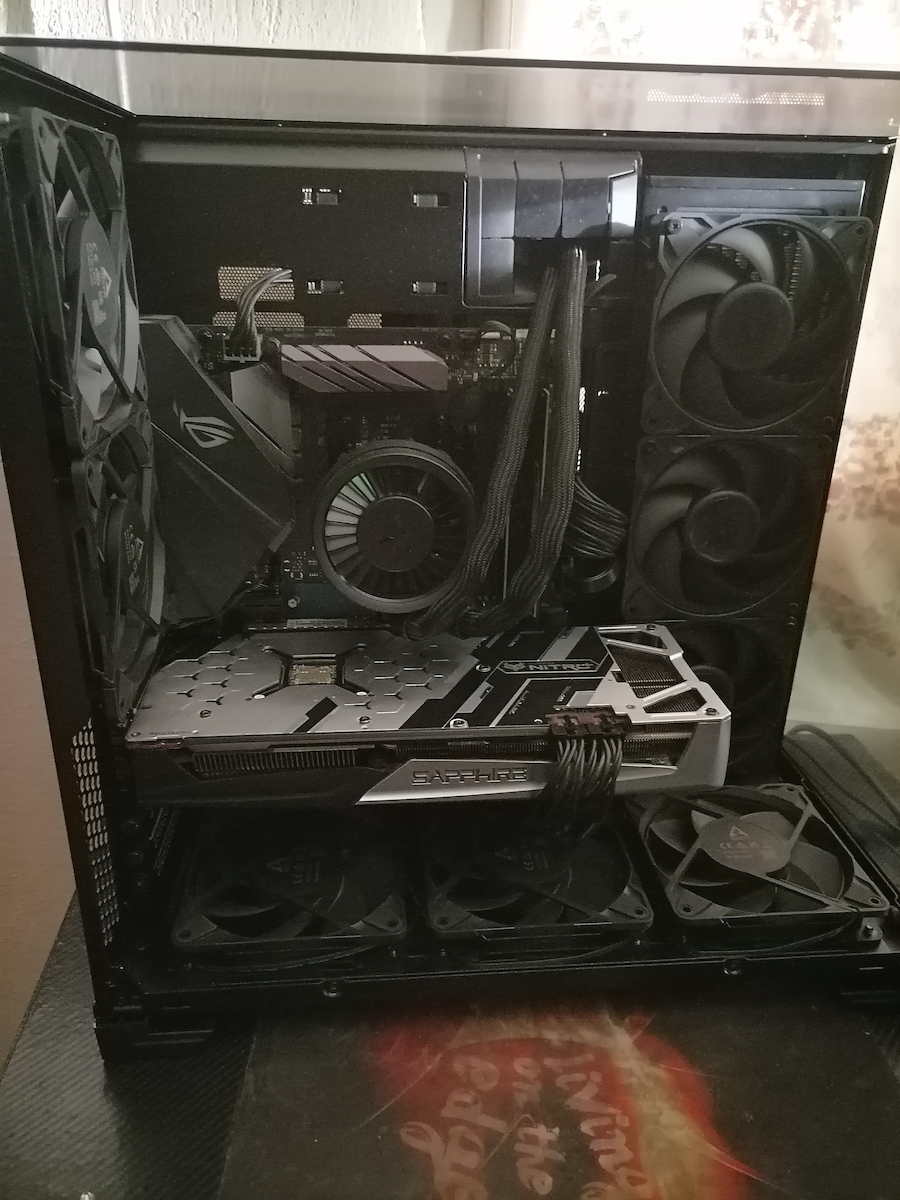

First, make sure it fits in your case, the radiator is VERY large. In the Lian Li Lancool 217 where I installed it, it fits perfectly (literally there is no clearance at all - and the case is generally one of the big ones - neither from the front fans nor from the motherboard heatsinks - MSI MAG X870).

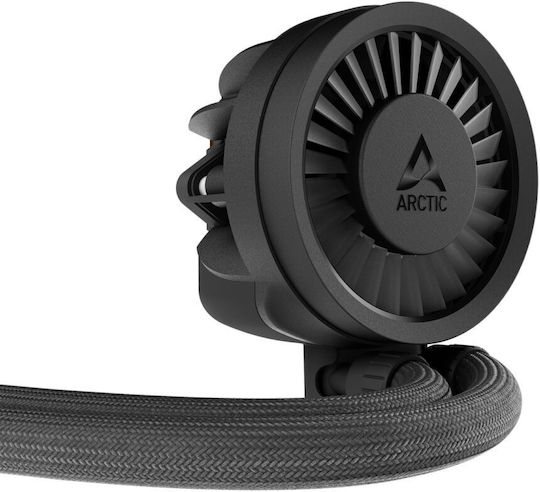

Even more important is to make sure it is compatible with your motherboard, as the VRM fan is bulky (Arctic has a compatibility list on their website).
The cooler comes with thermal paste and a bracket to hold Intel processors to prevent so-called bending, which can cause poor cooling performance.
The cooler supports connectivity with only one cable/header. However, to take advantage of this, your motherboard must have a PWM Header with at least 2 amps, otherwise it will not work (e.g., ASUS motherboards usually do not have headers over 1 amp. The MSI MAG x870 has a 2 amp CPU FAN Header and a 3 amp AIO Pump Header. You will find detailed information in each manual). You can always connect the cables separately.
With a Ryzen 7 9800x3D on idle in Windows 11, it keeps the temperature around 35-40 degrees (of course, this was tested in winter when the ambient temperature at home is <25-20 degrees) and it is practically silent.
Games that need to load shaders and require a lot of power at the beginning pushed the processor steadily to 70 degrees (full boost at 100%). Obviously, at such temperatures, it sounds like a jet engine because it has very powerful fans on it.
During gaming (specifically Space Marine 2 with graphics on Ultra), it does not exceed 52 degrees (unless something in the background, e.g., some antivirus, is running). In less demanding games, it does not exceed 45. The noise produced is quite low.
Now, let's move on to the issues I encountered.
The included paste was stuck to the tube and was not easy to apply. However, the above temperatures are with this paste and not with a top-of-the-line type like ThermalGrizzly.
For some reason, I had incredible difficulty screwing the heatsink onto the processor because one screw wouldn't catch, but that might have just been bad luck.
Είναι εξαιρετική ψήκτρα και μπορεί να κρατήσει πολύ καλές θερμοκρασίες.
Αρχικά, βεβαιωθείτε ότι χωράει στο κουτί σας, είναι ΠΟΛΥ μεγάλο το radiator. Στο Lian Li Lancool 217 που την έβαλα εγώ χωράει γάντι (κυριολεκτικά δεν έχει καθόλου περιθώριο - και το κουτί είναι από τα μεγάλα γενικά - ούτε από τα μπροστά φανάκια ούτε από τα heatsink της motherboard - MSI MAG X870)
Ακόμη πιο σημαντικό είναι να βεβαιωθείτε ότι υποστηρίζει τη μητρική σας, καθώς το VRM fan είναι ογκώδης (έχει λίστα η arctic στη σελίδα της).
Η ψήκτρα έρχεται με thermal paste αλλά και με εξάρτημα για να κρατάει τους επεξεργαστές Intel ώστε να μη γίνεται το λεγόμενο bending προκαλώντας κακές επιδώσεις ψύξης.
Η ψήκτρα υποστηρίζει συνδεσιμότητα με ένα μόνο καλώδιο/header. Για να το αξιοποιήσετε όμως πρέπει η μητρική σας να έχει PWM Header με τουλάχιστον 2amp, αλλιώς δεν θα λειτουργεί (π.χ. οι μητρικές ASUS συνήθως δεν έχουν πάνω από 1amp headers. Η MSI MAG x870 έχει 2amp CPU FAN Header και 3amp AIO Pump Header. Θα τα βρείτε αναλυτικά στο εκάστοτε manual). Μπορείτε πάντα να συνδέσετε ξεχωριστά τα καλώδια.
Με Ryzen 7 9800x3D σε idle windows 11 κρατάει περίπου την θερμοκρασία σε 35-40 βαθμούς (βέβαια, δοκιμάστηκε χειμώνα που η περιβαλλοντική θερμοκρασία είναι <25-20 βαθμούς στο σπίτι) και είναι πρακτικά αθόρυβη.
Παιχνίδια που χρειάζονται να φορτώσουν shaders και απαιτούν πολύ δύναμη στην αρχή πήγαν τον επεξεργαστή στους 70 βαθμούς σταθερά (full boost στο 100%). Προφανώς, σε τέτοιες θερμοκρασίες θα κάνει σαν τουρμπίνα από μαχητικό καθώς έχει πολύ δυνατά φανάκια πάνω της.
Κατά τη διάρκεια gaming (συγκεκριμένα το Space Marine 2 με γραφικά στα Ultra) δεν υπερβαίνει τους 52 βαθμούς (εκτός αν κάτι στο background π.χ. κάποιο antivirus κάνει κάτι). Σε παιχνίδια που δεν είναι απαιτητικά δεν υπερβαίνει τους 45. Ο ήχος που παράγεται είναι αρκετά χαμηλός.
Πάμε τώρα στα θεματάκια που αντιμετώπισα.
Η πάστα που έρχεται μαζί κολλούσε πάνω στο σωληνάριο και δεν είναι εύκολη η τοποθέτησή της. Βέβαια, οι παραπάνω θερμοκρασίες είναι με αυτή την πάστα και όχι με κάποια top-of-the-line τύπου ThermalGrizzly.
Για κάποιο λόγο δυσκολεύτηκα απίστευτα να βιδώσω το heatsink στον επεξεργαστή γιατί η μία βίδα δεν έπιανε, αλλά αυτό μπορεί να έτυχε.
