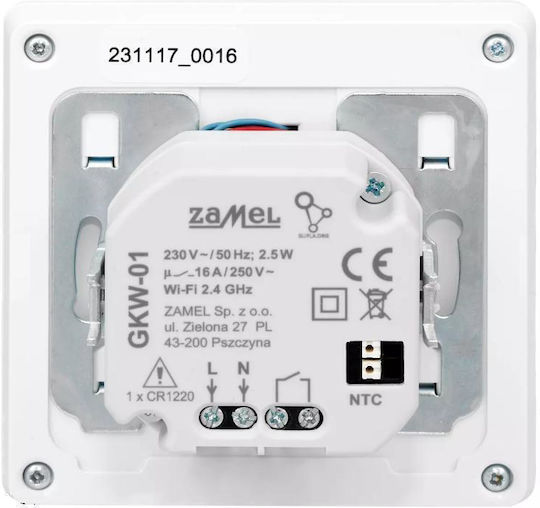

The Zamel Wi-Fi temperature controller measures temperature and humidity and enables remote control of heating systems via the Supla app. Its built-in clock supports a weekly schedule, while the LED matrix display features automatic brightness adjustment. An optional external sensor can be connected.
- Display type: Digital
- Number of phases: Single-phase
- Connectivity: 2.4 GHz Wi-Fi
- Maximum current: 16 A
- Power supply: 230 V AC, 50 / 60 Hz
- Power consumption: 1.6 W in standby, 2.5 W with relay activated
- Clock power supply: CR1220 3 V battery, with a service life of up to 2 years
- Measured values: Temperature and humidity
- Temperature setting range: 10–40 °C
- Temperature setting increment: 0.1 °C
- Accuracy: ±0.5 °C
- Internal sensor: Digital temperature and humidity sensor
- Display: White LED matrix
- Controls: 5 touch buttons and the Supla app
- Functions: Off, manual mode, weekly schedule, heating and cooling
- Relay: 16 A / 250 V AC, voltage-free NO output
- Brightness adjustment: Selectable level or automatic mode
- Button brightness adjustment: 8 levels
- Protection rating: IP20
- Operating temperature: -10–55 °C
- Installation: In a Ø 60 mm box
- Dimensions: 90 × 90 × 45 mm
- Weight: 0.156 kg
Specifications
- Display Type
- Digital
- Number of Phases
- Single-phase
- Maximum Current
- 16 A
Smart Features
- Connectivity
- Wi-Fi
