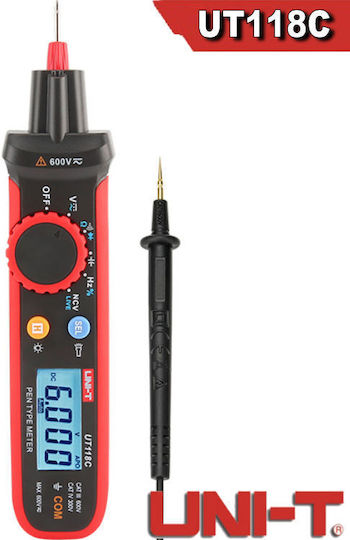

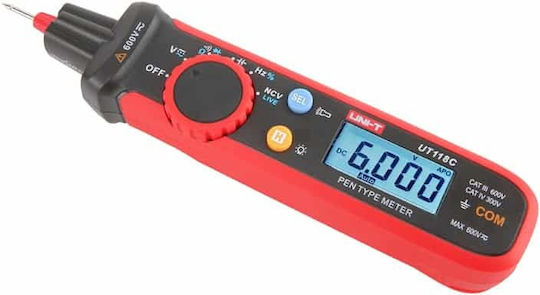

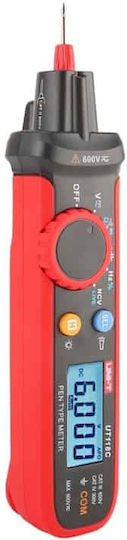

The Uni-T UT118C pen-type digital multimeter measures AC/DC voltage up to 600 V, resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 999.9 kHz. True RMS technology, auto-ranging, and a backlit LCD make measurements easier. It automatically detects diodes, continuity, and resistance, and features NCV, LIVE wire detection, LED and continuity testing, duty cycle measurement, and a flashlight.
The gold-plated test leads have a special tip, and the probe length can be adjusted to two positions. The two-color injection-molded construction makes the housing more durable. The package includes one AAA battery and a user manual.
- Type: Pen-type digital multimeter
- DC voltage: 6.000 V / 60.00 V / 600.0 V, accuracy ±(1% + 3)
- AC voltage: 6.000 V / 60.00 V / 600.0 V, accuracy ±(1% + 4)
- Resistance: 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ, accuracy ±(1% + 3); 6.000 MΩ, accuracy ±(1.5% + 5); 60.00 MΩ, accuracy ±(2.5% + 5)
- Capacitance: 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF, accuracy ±(3.5% + 8); 6.000 mF, accuracy ±(5.0% + 9); 60.00 mF, accuracy ±(10.0% + 9)
- Frequency: 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz, accuracy ±(0.01% + 5)
- Duty cycle: 0.1%–99.9%
- Maximum display count: 6000 counts
- Display: Backlit HTN LCD, 36 × 15 mm
- Functions: Auto-ranging, automatic LED indication, continuity and resistance detection, NCV, LIVE test, LED and continuity testing, flashlight, duty cycle measurement, two-color indication, True RMS
- Probe: Two-position adjustable length
- Test leads: Gold-plated, with a special tip
- Measurement category: CAT III 600V / CAT IV 300V
- Power supply: 1 × 1.5 V AAA battery
- Dimensions: 182.5 × 38.0 × 38.5 mm
- Color: Gray and red
- Certifications: CE, cETLus, RoHS

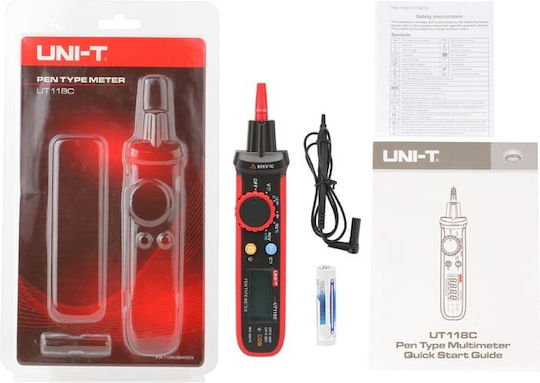

- Package contents: 1 AAA battery, user manual
- Colour
- Red
- with LCD Screen
- Yes
- True RMS
- Yes
- with Buzzer
- No
