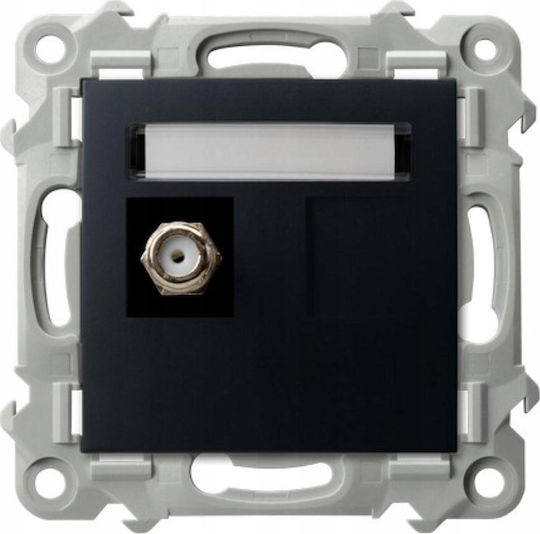

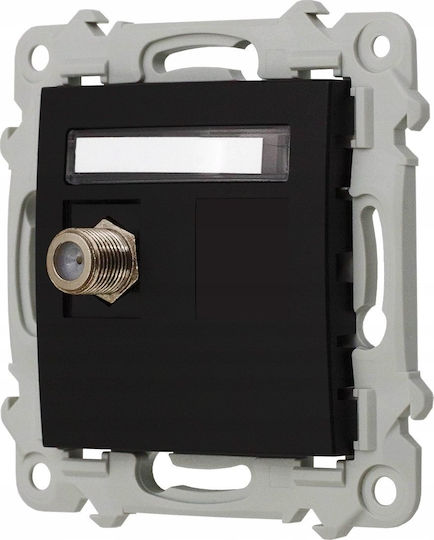

The Ospel Szafir GPA-1ZF/m/33 single antenna socket has a female threaded F-type connector and is designed for RTV, SAT, DVB-T/T2, DVB-S/S2, SMATV and cable TV installations. It covers a frequency range of 5–2400 MHz and features full 360° metal shielding to protect against electromagnetic and radio interference.
It is flush-mounted in a Ø60 mm box and is compatible with Szafir frames for 1–5 modules. The cable is secured without soldering.
- Type: Single pass-through antenna socket
- Connector: Female threaded F-type
- Frequency range: 5–2400 MHz
- Pass-through attenuation: ≤ 1 dB
- Shielding: Full 360° metal shielding
- Front material: Thermoplastic
- Colour: Metallic black
- Installation: Flush-mounted in a Ø60 mm box
- Frame compatibility: Szafir, 1–5 modules
- Protection rating: IP20
- Operating temperature: -20 to +50 °C
- Standards: CE, RoHS
- Type
- TV
- Category
- Aerial
- Colour
- Black
