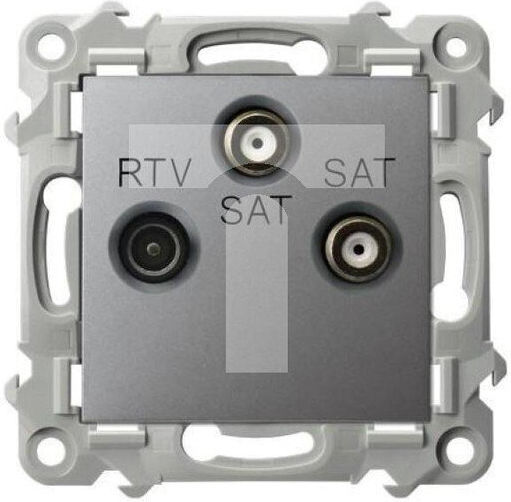

The Ospel SZAFIR GPA-Z2S/m/70 RTV-SAT socket is designed for wall mounting and has two SAT outputs. Its plastic housing is matte gray, and signal attenuation is low.
- Type: RTV-SAT
- SAT outputs: 2
- Impedance: 75 Ω
- Frequency range: 5 MHz – 1000 MHz
- Maximum voltage: 250 V
- Signal attenuation: Low
- Attenuation factor: 1.5 dB
- Housing material: Plastic
- Color: Matte gray
- Operating temperature: -10 °C to +60 °C
- Operating humidity: Up to 95% non-condensing
- EMI: Yes
- Dimensions: 45 x 45 mm
- Component height: 75 mm
- Component depth: 42 mm
- Flush-mounting depth: 29 mm
- Protection rating: IP-20
- Mounting: Wall-mounted
- Type
- Sat
- Colour
- Grey
