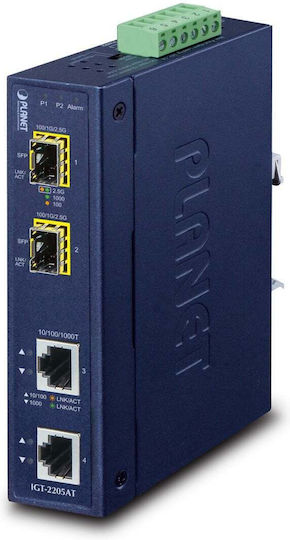

The Planet IGT-2205AT is an unmanaged Layer 2 switch for extending Gigabit Ethernet networks in surveillance and industrial control systems. It connects devices via two RJ45 ports and two SFP ports, with configurable optical interfaces.
Its IP30 enclosure allows installation on a DIN rail or wall. It supports Jumbo Frames up to 9216 bytes and operates at temperatures from -40 °C to 75 °C.
- Type: Unmanaged Layer 2 switch
- Ethernet ports: 2 RJ45 10/100/1000BASE-T
- SFP ports: 2 100/1000/2500BASE-X
- Switching speed: 1 Gbps
- Power supply: Dual input via DC connectors, 12–48 V DC or 24 V AC
- ESD protection: Up to 6 kV DC
- Mounting: Rack, DIN rail or wall
Network Specifications
- Type
- Unmanaged
- Layer
- L2
- PoE
- No
Technical Specifications
- Ethernet connections
- 2 Port
- Ethernet Speed
- 1000 Mbps
- SFP connections
- 2 Port
- Switching Speed
- 1 Gbps
- Rack mounting
- Yes
