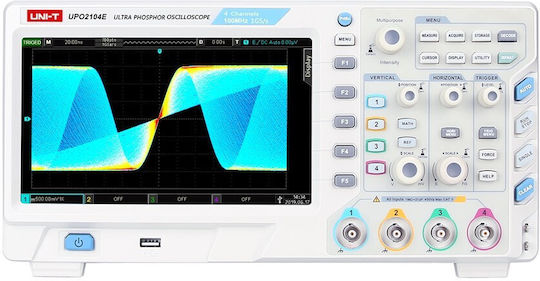

Uni-T UPO2104E Heat Rate Monitor Counter 100MHz
Oscilloscopes & Frequency Generators

Uni-T UPO2104E Heat Rate Monitor Counter 100MHz

Oscilloscope Features:

  • Analog bandwidth: 100 MHz
  • Number of channels: 4
  • Sampling rate: 1 GS/s
  • Memory depth: 56 Mpts (1 channel)
  • Waveform capture rate: 83,000 wfms/s
  • Time base: 5 ns/div~50 s/div
  • Input...

Oscilloscope Features:

  • Analog bandwidth: 100 MHz
  • Number of channels: 4
  • Sampling rate: 1 GS/s
  • Memory depth: 56 Mpts (1 channel)
  • Waveform capture rate: 83,000 wfms/s
  • Time base: 5 ns/div~50 s/div
  • Input resistance: (1MOhm 2%) / (21 pF 3 pF)
  • Vertical sensitivity: 1 mV/div~20 V/div (1M?)
  • Trigger modes: Edge, pulse width, window, N-edge, delay, time limit,...
See full description See full description
1074 74 €
1,08€ cashback in Coins 1,08€ cashback in Coins
Delivery Wed, 02 Sep - Tue, 08 Sep
Free shipping cost
Sent from Greece
From Getters 4.5 (107)
4.5 (107 reviews)
Greece
5 pieces
See Multimeters on the page of Getters
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

Oscilloscope Features:

  • Analog bandwidth: 100 MHz
  • Number of channels: 4
  • Sampling rate: 1 GS/s
  • Memory depth: 56 Mpts (1 channel)
  • Waveform capture rate: 83,000 wfms/s
  • Time base: 5 ns/div~50 s/div
  • Input resistance: (1MOhm ±2%) / (21 pF ±3 pF)
  • Vertical sensitivity: 1 mV/div~20 V/div (1M?)
  • Trigger modes: Edge, pulse width, window, N-edge, delay, time limit, duration, setup/hold, slope, video
  • Serial bus decoding options: RS232, I2C
  • Waveform functions: A+B, A-B, AxB, A/B, FFT, logic operations, digital filter, advanced
  • Automatic measurement of 34 parameters: Maximum, minimum, peak-to-peak, median, peak, base, width, average period, average, periodic RMS, RMS, overshoot, preshoot, frequency, period, rise time, fall time, positive pulse duration, negative pulse duration, rise delay, fall delay, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, positive duty cycle, negative duty cycle, phase, area, cycle area
  • Types of result display: Display 5 measurements simultaneously
  • Measurement statistics: Average, Maximum, Minimum, standard deviation
  • Frequency window: 6 bits

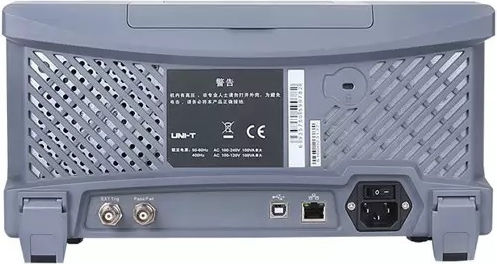

  • Interfaces: USB-Host, USB-Device, LAN, EXT Trig, AUX Out

General Characteristics:

  • Power supply: 100V~240 VAC, 45-440 Hz
  • Display: 8” TFT LCD, WVGA (800 x 480 px)
  • Weight: 3.5 kg
  • Dimensions: 336 x 164 x 108 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Counter
Bandwidth
100 MHz
Weight
3.5 kg
Height
-
Length
-
Width
-

Signal Modulation

AM
No

AM

Information is transmitted by varying the amplitude (intensity) of the carrier signal while the frequency remains constant. It is used in RF applications and communications testing.
FM
No

FM

The information is transmitted through changes in the frequency of the carrier signal. It offers greater noise resistance compared to AM.
PM
No

PM

The information is transmitted through changes in the phase of the carrier signal. It is used in telecommunications and digital transmission systems.
PWM
No

PWM

Information is encoded by changing the duration (duty cycle) of the pulses while the amplitude remains constant. Common in power electronics and motor control.
FSK
No

FSK

Digital modulation where different frequencies correspond to different digital values (e.g., 0 and 1). It is used in modems and wireless communications.
ASK
No

ASK

Digital modulation where the information is represented by changes in the signal amplitude. It is used in simple data transmission systems.
PSK
No

Waveform Types

Sin
No

Sin

(Sinusoidal) Produces a smooth periodic waveform with continuous amplitude variation. Used in tests of electronic circuits, audio, and telecommunications.
Square
No

Square

Generates a signal that alternates between two voltage levels with abrupt transitions. Suitable for digital circuits and timing tests.
Ramp
No

Ramp

Produces a signal with a linear increase or decrease in voltage over time before the cycle repeats. Used in scanning, timing, and control systems.
Pulse
Yes

Pulse

Generates short pulses with adjustable amplitude and duration. Useful for testing digital circuits and analyzing system response.
Arbitrary
No

Arbitrary

Allows the creation or loading of custom waveforms beyond the predefined signal shapes. Suitable for specialized measurements and simulations.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Oscilloscope Features:

  • Analog bandwidth: 100 MHz
  • Number of channels: 4
  • Sampling rate: 1 GS/s
  • Memory depth: 56 Mpts (1 channel)
  • Waveform capture rate: 83,000 wfms/s
  • Time base: 5 ns/div~50 s/div
  • Input resistance: (1MOhm ±2%) / (21 pF ±3 pF)
  • Vertical sensitivity: 1 mV/div~20 V/div (1M?)
  • Trigger modes: Edge, pulse width, window, N-edge, delay, time limit, duration, setup/hold, slope, video
  • Serial bus decoding options: RS232, I2C
  • Waveform functions: A+B, A-B, AxB, A/B, FFT, logic operations, digital filter, advanced
  • Automatic measurement of 34 parameters: Maximum, minimum, peak-to-peak, median, peak, base, width, average period, average, periodic RMS, RMS, overshoot, preshoot, frequency, period, rise time, fall time, positive pulse duration, negative pulse duration, rise delay, fall delay, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, positive duty cycle, negative duty cycle, phase, area, cycle area
  • Types of result display: Display 5 measurements simultaneously
  • Measurement statistics: Average, Maximum, Minimum, standard deviation
  • Frequency window: 6 bits
  • Interfaces: USB-Host, USB-Device, LAN, EXT Trig, AUX Out

General Characteristics:

  • Power supply: 100V~240 VAC, 45-440 Hz
  • Display: 8” TFT LCD, WVGA (800 x 480 px)
  • Weight: 3.5 kg
  • Dimensions: 336 x 164 x 108 mm
