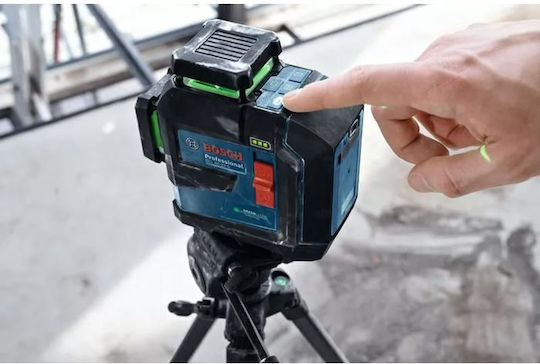

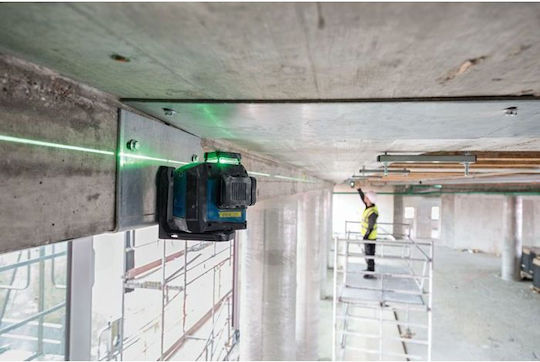

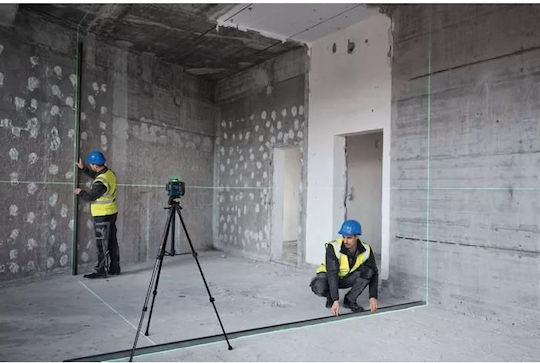

Linear Laser Level. It is a point-to-point level that projects several horizontal and vertical laser lines using multiple LED diodes.
Capabilities
Linear Laser Level. It is a point-to-point level that projects several horizontal and vertical laser lines using multiple LED diodes.
Features
- Battery voltage: 3.7 V
- Laser diode: 500 – 540 nm, < 10 mW
- Operating temperature: -10 – 40 °C
- Storage temperature: -20 – 70 °C
- Laser class: 2
- Working range*: radius up to 30 meters
- Working range with receiver*: radius up to 80 m
- Leveling accuracy*: ± 0.3 mm/mᵃ
- Self-leveling range: ± 4°
- Leveling time: 4 s
- Dust and moisture protection: IP 65
- Power supply: 4 x 1.5 V LR6 (AA), Li-Ion Battery 3.7 V (3,000 mAh)
- Maximum operating time: 5 hours (Li-Ion) and 5 hours (4 x AA) in 3-beam operation
- Tripod thread: 1/4″, 5/8″
- Weight, approx.**: 0.93 kg
- Laser beam color: green

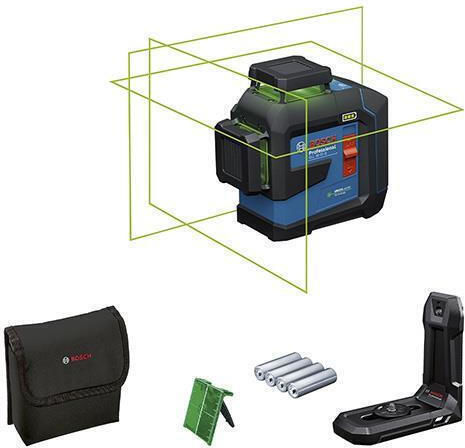

- Projection: 3 lines 360°
- Compatible laser receivers: LR 7
Dimensions
- Type
- Cross-Line / Horizontal / Vertical
- Colour of Laser
- Green
- Self-Leveling
- No
Beam Specifications
- Working Range
- 80 m
Additional Features
- Protection Certification
- IP65
- Pulsed
- No
Power Specifications
- Battery Type
- AA
- Required Number of Batteries
- 4
Accessories
- Tripod
- No
- Glasses
- No
- Mount / Bracket
- Yes
- Target
- Yes
- Receiver
- No
- Remote Control
- No
- Case
- No
- Tripod Base
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
