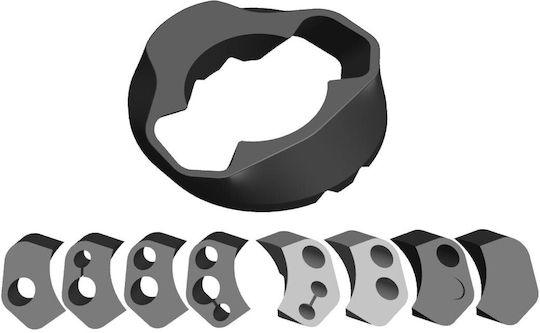

The SIC HS02-06 is a universal cable organizer for HS02 headset with internal cable routing. It allows the use of standard stems with round spacers that are not compatible with the OC HS02 headset. Since the universal organizer and the standard stems do not have the Spinblock assembly profile, the restrictive Spinblock function is lost on Orbea bikes that included it.
Note that Orbea does not guarantee the compatibility of stems that were not originally assembled by them. It is important to ensure that the standard stem allows proper assembly of all components and that the cables enter correctly into the headset organizer.
Includes SIC inserts for each internal cable routing combination through the headset:
- SIC L0 HS02-49. No holes
- SIC L1 HS02-42. 4mm+4mm blind
- SIC L2 HS02-43. 4mm+4mm
- SIC L3 HS02-44. 4mm+4mm+3mm
- SIC R1 HS02-45. 5mm
- SIC R2 HS02-46. 4mm+5mm
- SIC R2e HS02-47. 3mm+5mm
- SIC R3 HS02-48. 4mm+3mm+3mm
- Product Number
- XC600000
- Bicycle Parts
- -
- Type
- -
- Wheel Size
- -
