Schneider Electric Automatic Circuit Breaker 2A Four-pole AC/DC A9F04402
Automatic Circuit Breaker

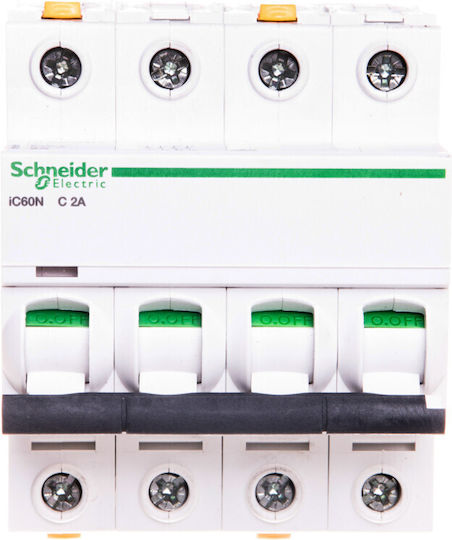

Schneider Electric Automatic Circuit Breaker 2A Four-pole AC/DC A9F04402

The Schneider Electric Acti 9 iC60 miniature circuit breaker is four-pole and designed for distribution applications. It features thermal-magnetic tripping with a C curve and operates on AC and DC...

The Schneider Electric Acti 9 iC60 miniature circuit breaker is four-pole and designed for distribution applications. It features thermal-magnetic tripping with a C curve and operates on AC and DC networks.

  • Type: Miniature circuit breaker
  • Range: Acti 9
  • Number of poles: 4 protected poles
  • Rated current: 2 A
  • Supply: AC and DC
  • Tripping curve: C
  • Tripping:...
See Description & Specifications See Description & Specifications
85 32 €
Delivery Thu, 19 Nov - Mon, 23 Nov
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Getters 4.6 (112)
4.6 (112 reviews)
Greece
2 pieces
See Electrical Panel Supplies on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Questions
Review the product
Product report

Description & Specifications

The Schneider Electric Acti 9 iC60 miniature circuit breaker is four-pole and designed for distribution applications. It features thermal-magnetic tripping with a C curve and operates on AC and DC networks.

  • Type: Miniature circuit breaker
  • Range: Acti 9
  • Number of poles: 4 protected poles
  • Rated current: 2 A
  • Supply: AC and DC
  • Tripping curve: C
  • Tripping: Thermal-magnetic
  • Magnetic tripping: 8 x In +/- 20%
  • Icu breaking capacity: 50 kA at 12...133 V AC, 50/60 Hz; 10 kA at 180...250 V DC; 50 kA at 220...240 V and 380...415 V AC, 50/60 Hz; 6000 A at 400 V AC, 50/60 Hz; 25 kA at 440 V AC, 50/60 Hz
  • Ics breaking capacity: 100% x Icu: 6000 A, 10 kA, 50 kA or 25 kA at the corresponding AC and DC voltages
  • Utilization category: A
  • Isolation function: Yes
  • Frequency: 50/60 Hz
  • Current-limiting class: 3
  • Rated insulation voltage Ui: 500 V AC, 50/60 Hz
  • Rated impulse withstand voltage Uimp: 6 kV
  • Operation: Lever-operated
  • Indicators: Contact and tripping
  • Mounting: DIN rail
  • Dimensions: Height 91 mm, width 72 mm, depth 78.5 mm
  • Width in 9 mm modules: 8
  • Weight: 0.5 kg
  • Colour: White
  • Mechanical endurance: 20,000 cycles
  • Electrical endurance: 10,000 cycles
  • Rigid conductors: 1...25 mm²
  • Flexible conductors: 1...16 mm²
  • Wire stripping length: 14 mm
  • Tightening torque: 2 N.m
  • Earth-leakage protection: With a separate block
  • Degree of protection: IP20
  • Pollution degree: 3
  • Overvoltage category: IV
  • Tropicalization: 2
  • Operating humidity: 95% at 55 °C
  • Operating temperature: -35...70 °C
  • Storage temperature: -40...85 °C
  • Standards: IEC 60898-1, EN 60898-1, IEC 60947-2, EN 60947-2
  • RoHS compliance: Since 1216
  • SVHC substances under REACh: No SVHC above the threshold
  • End of life: No special actions required

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
4
Rated Current
2 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes
