Features

• Professional compression connectors designed for RG6 cables. Connectors for cables with a diameter of 6.6 - 6.8mm and conductor thickness of 1.00, 1.02, or 1.05 mm.
• The connectors were created for the largest cable providers in the world, who have the highest quality requirements regarding physical strength and weather resistance, maximum shielding, and high return loss.
• All of these features ensure that Cabelcon connectors perform exceptionally where we want to guarantee the quality of connection in terms of RF transmission, power transfer, and mechanical strength.

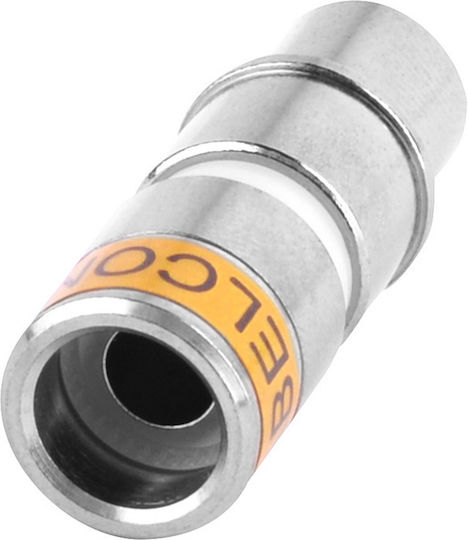

• The IECF (plug) and IECM (jack) connectors are dedicated to RTV sockets or to television receivers or STBs.
• Compliance with the IEC standard ensures the appropriate dimensions of the connectors and guarantees the stability of the connection.
• Fast and easy installation of the compression connector.
• Unique, patented compression system.
• Operation up to 3 GHz.
• Return loss >15-20dB.
• Shielding class A+.
• Clip strength - >50% of the cable's strength.

Technical Data

• Operating frequency range: 0.3-3000 MHz
• Insertion loss (typ.) dB
  • 0.3-500 MHz: 0.01
  • 500-860 MHz: 0.05
  • 860-1000 MHz: 0.05
  • 1000-1750 MHz: 0.19
  • 1750-2150 MHz: 0.27
  • 2150-3000 MHz: 0.45
• Return loss (typ.) dB
  • 0.3-500 MHz: -22.3
  • 500-860 MHz: -21.3
  • 860-1000 MHz: -20.9
  • 1000-1750 MHz: -18.9
  • 1750-2150 MHz: -17.9
  • 2150-3000 MHz: -16.2
• Shielding: Class A+ (>95dB)
• Impedance: 75 Ohm
