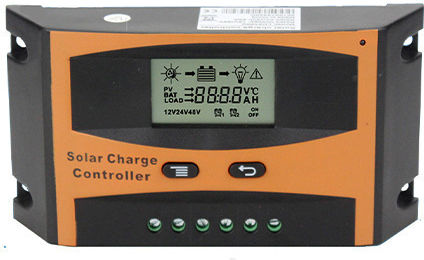

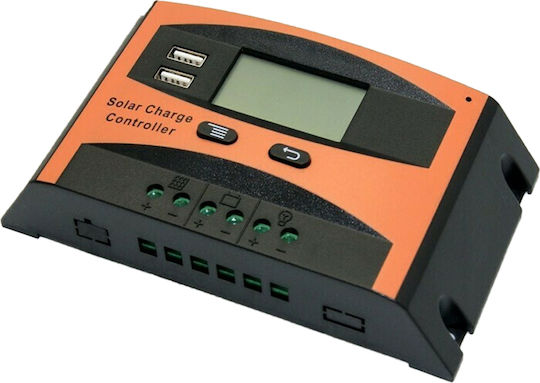

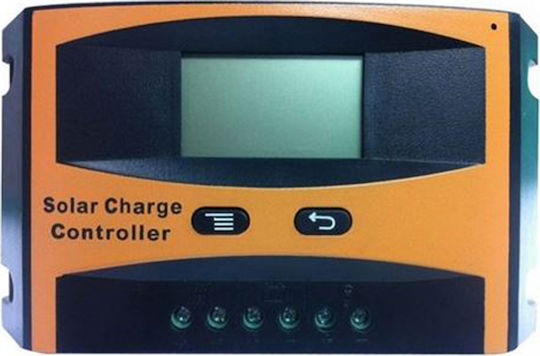

PWM Solar Charge Controller 20A 12/24V 000303

The Tradesor PWM charge controller is designed for 12 V or 24 V photovoltaic systems. The LCD displays the charging current, discharge current and battery voltage every 5 seconds, while the system...

The Tradesor PWM charge controller is designed for 12 V or 24 V photovoltaic systems. The LCD displays the charging current, discharge current and battery voltage every 5 seconds, while the system voltage is detected automatically.

It supports adjustable charging and discharging parameters, automatic temperature compensation and remote monitoring. It...

See full description See full description
17 28 €
Delivery Friday, 20 November
4,50 € shipping cost
Sent from Greece
From Dealme 4.5 (32)
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

The Tradesor PWM charge controller is designed for 12 V or 24 V photovoltaic systems. The LCD displays the charging current, discharge current and battery voltage every 5 seconds, while the system voltage is detected automatically.

It supports adjustable charging and discharging parameters, automatic temperature compensation and remote monitoring. It includes protection against battery discharge and low voltage, overload, short circuit and reverse current, as well as automatic restart after a delay following an overload.

  • Type: PWM
  • System voltage: 12 V or 24 V
  • Maximum charging current: 20 A
  • Maximum photovoltaic panel input voltage: 55 V
  • Maximum photovoltaic panel power: 260 W in a 12 V system, 520 W in a 24 V system
  • Display: LCD
  • Functions: Button control, cumulative recording of charging and discharging in Ah
  • Protections: Against battery discharge and low voltage, overload, short circuit and reverse current
  • Protection rating: IP32
  • Dimensions: 168 × 92 × 41.5 mm
  • Weight: 0.320 g
  • Certifications: ISO 9001:2008, CE, RoHS

Manufacturer

See full description

Specifications

Specifications

Type
PWM

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

3 users have this product and can help you

Ask for the product

Description & Specifications

The Tradesor PWM charge controller is designed for 12 V or 24 V photovoltaic systems. The LCD displays the charging current, discharge current and battery voltage every 5 seconds, while the system voltage is detected automatically.

It supports adjustable charging and discharging parameters, automatic temperature compensation and remote monitoring. It includes protection against battery discharge and low voltage, overload, short circuit and reverse current, as well as automatic restart after a delay following an overload.

  • Type: PWM
  • System voltage: 12 V or 24 V
  • Maximum charging current: 20 A
  • Maximum photovoltaic panel input voltage: 55 V
  • Maximum photovoltaic panel power: 260 W in a 12 V system, 520 W in a 24 V system
  • Display: LCD
  • Functions: Button control, cumulative recording of charging and discharging in Ah
  • Protections: Against battery discharge and low voltage, overload, short circuit and reverse current
  • Protection rating: IP32
  • Dimensions: 168 × 92 × 41.5 mm
  • Weight: 0.320 g
  • Certifications: ISO 9001:2008, CE, RoHS
