CONTEC RS01 Sleep Apnea Monitor

The product is suitable for nocturnal SpO2 oximetry and respiratory monitoring during sleep. Suitable for use by patients in their home environment, by clinics, and hospitals.

Technical Specifications

• Nasal airflow measurement range: 0 rpm- 40 rpm, accuracy: ±2rpm
• SpO2 measurement range: 0%~ 100% (resolution 1%) with accuracy: 70%~100%, (±2%), while less than 70%, accuracy value not specified.
• PR measurement range: 30 bpm~250 bpm, accuracy: ±2 or ±2%
• Resistance to ambient light: The deviation between the value measured under artificial or indoor natural light and that of a dark room is less than ±1%.
• Accuracy under low perfusion: low perfusion 0.4%, SpO2 accuracy: ±4%, PR accuracy: ±2 bpm or ±2%
• Power consumption: ≤ 100mA
• Power supply: 3.7 V rechargeable lithium battery.
• Safety type: internally powered equipment, applied part type BF.

Features

• Display of SpO2 and PR values, pulse sound, and bar graph indication.
• Display of pulse waveforms and respiratory flow waveforms.
• Low power alarms.
• Finger detection failure and limit exceedance.
• Battery status indication.
• Real-time clock.
• Operation time on/off.
• Multiple case storage.
• Continuous 12-hour data recording.
• Data upload via USB port.
• PC analysis software.

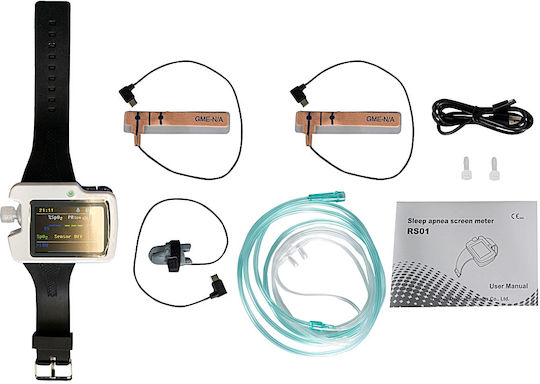

Package Contents

• USB cable
• Nasal tube
• 2x Nasal tube adapters
• 2x SpO2 sensor (Adult and Pediatric)
• User manual

Dimensions: 69mm (L) x 50mm (W) x 17.3mm (H)

Weight: 100g
