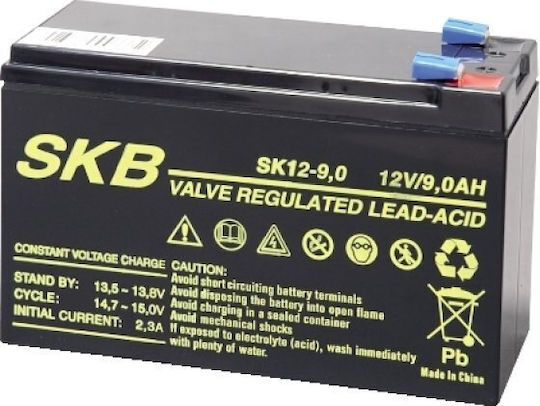

SKB SK12-9 - Rechargeable Lead Battery 12V/9Ah. SKB lead batteries are recombined, also known as sealed. This technology allows the battery to perform approximately 200/300 cycles at 100% depth of discharge, and up to 1000 cycles at 30% of its capacity.
Charging: Charging must be done with a constant voltage charger, following the data displayed on the battery. An incorrect voltage can cause damage to the battery. The battery should not be left discharged after use but should be recharged immediately.
Specifications:
- Number of Cells: 6
- Voltage: 12Vdc
- Capacity: 9.0 Ah
- Battery Power (15 min): 204W
- Cell Power (15 min): 34W
- Terminals: Faston 6.3mm
- Terminal Configuration: 4
- Dimensions (L x W x H): 151x65x95 mm
- Weight: 2.6 Kg
- Usage: General, UPS
- Buffer Charge Voltage: 13.5 - 13.8 Vdc
- Cyclic Use Charge Voltage: 14.4 - 15.0 Vdc
- Typical Charge Current: 2.70A
- Maximum Discharge Current (5 sec): 130A
- Discharge Temperature: -10 ~ +60 °C
- Charge Temperature: -20 ~ +60 °C
- Storage Temperature: -20 ~ +60 °C
- EUROBAT Classification: 3 - 5 years "Standard Commercial"
Package Contents: 1x SKB SK12-9 - Rechargeable Lead Battery 12V/9Ah
- Capacity
- 9 Ah
- Voltage
- 12 V
- Loading Speed
- -
