Italian motor set for sliding garage doors for heavy use. It is suitable for heavy industrial-type doors up to 1600kg, which have high usage frequency requirements.

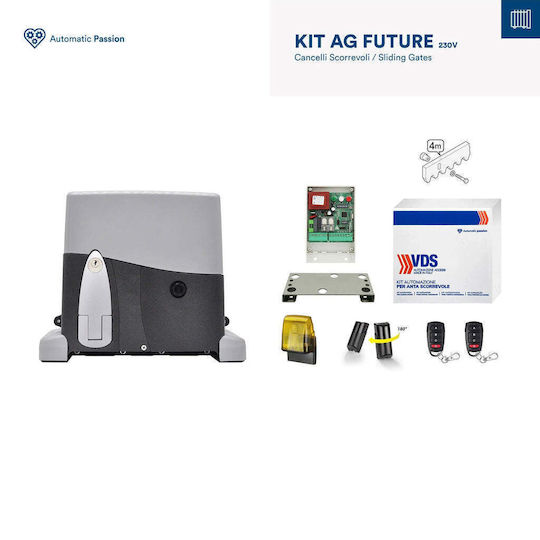

The KIT includes:

• Motor VDS AG-FUTURE-1600-OIL with a metal gear box in an oil bath
• Integrated Autotech 5070S control panel with numerous safety functions
• 4m galvanized metal rack with spacers
• 2 remote controls
• LED light with antenna
• A set of wired safety photocells with a 180-degree rotation capability
• Support base
• Activation rods for limit switches
• Disengagement keys
• Installation instructions in Greek

Technical Specifications:

• Product code: VDS-AG-FUTURE-1600
• Power supply voltage: 230 VAC
• Motor operating voltage: 230 VAC
• Motor power consumption: 360 Watt
• Supply current: 1.8 A
• Motor speed: 1400 rpm
• Capacitor capacity: 18μF
• Maximum door weight: 1600 Kg
• Type of mechanism: Oil lubrication/cooling (oil-bath), Non-reversible
• Internal gears: Metal
• Maximum usage frequency: S3-80% at 20°C
• Open/close cycles per hour: For a door of indicative length 5m, at 20°C: up to 48
• Maximum leaf speed: 10 m/min
• Motor winding thermal protection: 140 °C
• Gear type: Z16 / m4 (16 teeth / module 4)
• Type of limit switches: Mechanical - With microswitches and spring
• Disengagement method: With key
• Operating temperature range: -20°C to +55°C
• Dust and moisture protection rating: IP-44
• Sound pressure level: < 35 dba
• Motor weight: 13 Kg
• Motor dimensions: 310 mm x 150 mm x 264 mm
• Motor box dimensions: 330 mm x 240 mm x 350 mm
• Packaging: Cardboard box
• CE Compliance: YES
• Country of origin: Italy
• Manufacturer: VDS
