Main Specifications
- Power Source
- Electric
- Type
- -
Current Specifications
- Power
- 2400 W
Features & Functions
- Speed Setting
- No
- Dust Suction System
- No
- Handle Included
- No
- Brushless
- No
- Integrated Light
- No
- Net Weight
- -
Plunge Router
- Reception
- -
- Maximum Milling Path
- -
- Side Guide
- No
Palm Router
- Tool Holder
- -
Biscuit Joiners
- Cutting Depth
- -
Wall Chasers
- Groove Depth
- -
- Cutting Width
- -
- Disc Diameter
- -
Planers
- Corner Notch
- No
- Grinding Thickness
- -
- Cut Depth
- -
- Scaling Width
- -
Contents
- Carrying Case
- -
- Accessories
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description
The Constant Electronic system offers a stable work rate, regardless of the material. It provides a constant rotation speed, essential for long-term or precise work. The ergonomically shaped handle allows for multiple working positions, while the small size and low weight facilitate use.
The integrated dust extraction connection ensures safe cutting by minimizing dust, keeping the workspace clean and hygienic. The dust extraction adapter is recommended for your health.
Technical data:
- Adjustable groove depth: 20 - 65 mm
- Groove width: 3 - 40 mm
- No-load speed: 5,000 min-1
- Disc diameter: 230 mm
- Rated capacity: 2,400 W
- Output power: 1,670 W
- Weight: 8.4 kg
- Length: 690 mm
- Height: 455 mm
Features:
- Spindle lock
- Dust extraction system
- Start current limiter
Basic equipment:
- Spacer 3 x 4 mm (ET no. 3 609 202 041)
- 4 spacers 6 mm (ET no. 3 609 202 042)
- Chisel/knife for breaking (ET no. 3 607 959 005)
- Bent ring spanner 1 607 950 004
- Mounting flange (ET no. 3 609 202 039)
- Dust extraction connector 1 600 793 007
- Round nut (ET no. 3 609 202 040)
- Additional handle 2 602 025 075
- Toolbox 2 605 438 348
Various information:
- Disc diameter: 230 mm
- Power: 2300 W
- Smooth adjustment of depth and width.
- For wood: No.
- For concrete: Yes.
- For building materials: Yes.
- Minimum cutting width: 3 mm.
- Disc hole diameter: 22.2 mm.
- Rotation speed: 5000 rpm.
- Maximum cutting width: 40 mm.
- Maximum cutting depth: 65 mm.
- Weight: 8.4 kg.
- Minimum cutting depth: 20 mm.

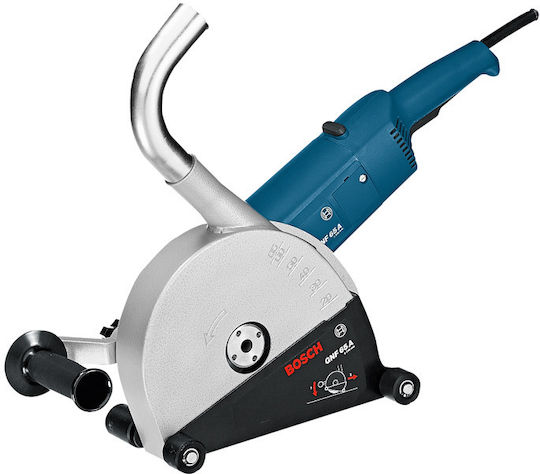

- Model: GNF 65 A
