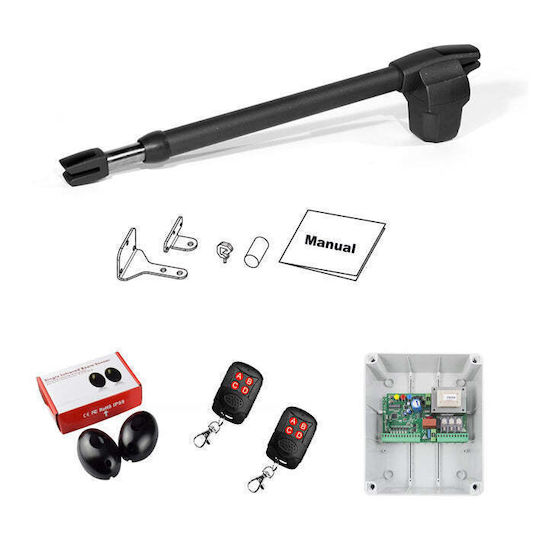

The Motorline LINCE400-D-er4-FULL-KIT motor kit automates a single-leaf swing garage door weighing up to 250 kg and up to 3 m wide. It includes a linear electromechanical actuator with permanent grease lubrication, an electronic control unit in a weatherproof plastic enclosure, and remote controls. The motor operates on a single-phase 230 Vac supply and can perform up to 20 opening and closing cycles per hour at 20 °C.

The piston has a usable stroke of 40 cm, and the maximum opening angle is 108°. The actuator can be disengaged using a hex key, allowing the door to be operated manually in the event of a power failure.

• Door type: Single-leaf swing
• Actuator type: Linear, electromechanical, permanently grease-lubricated and non-reversible
• Maximum door-leaf weight: 250 kg
• Maximum door-leaf width: 3 m
• Maximum width without an electric lock: 2.5 m
• Maximum opening angle: 108°
• Usable piston stroke: 40 cm
• Operating voltage: 230 Vac, single-phase
• Motor power consumption: 230 W
• Supply current: 1.3 A
• Capacitor capacity: 8 μF
• Maximum force: 2300 N
• Maximum duty cycle: 25% - S3
• Opening and closing cycles per hour: Up to 20 at 20 °C
• Motor speed: 1400 rpm
• Operating temperature range: -25 °C to +65 °C
• Noise level: LpA
• Motor winding thermal protection: 120 °C
• Thermal reset time: 5 min
• Protection rating: IP54
• Disengagement method: Hex key
• Housing material: Aluminium
• Housing colour: Black
• Motor: 1 unit
• Control unit: 1 unit, in a weatherproof plastic enclosure
• Remote controls: 2 wireless
• Safety photocells: 1 wired set, with transmitter and receiver
• Package contents: Mounting brackets and pins, 8 μF capacitor, disengagement key and installation instructions
• CE compliance: Yes
• Country of manufacture: Portugal
