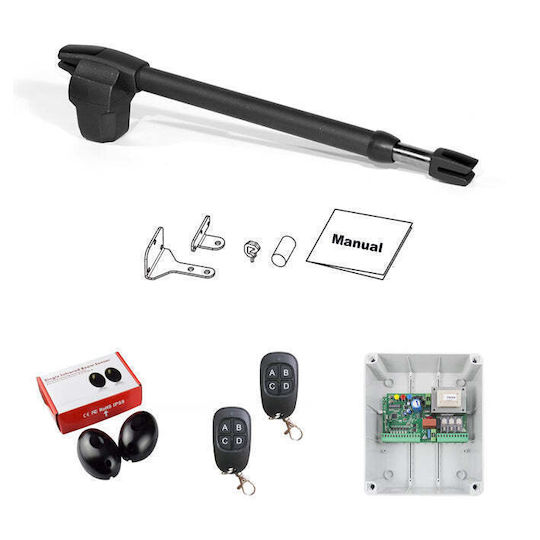

The Motorline LINCE400-S-ec4-FULL-KIT automates a single-leaf swing garage door with a leaf weighing up to 250 kg and measuring up to 3 m wide. It includes a linear electromechanical actuator with permanent grease lubrication and non-reversible operation, as well as an electronic control board with receiver in a waterproof plastic enclosure. The motor operates on a 230 Vac power supply and can be disengaged with a hex key to move the door manually in the event of a power outage.

The actuator has a useful piston stroke of 40 cm and a maximum opening angle of 108°. An electric lock is required for leaves wider than 2.5 m.

• Door type: Single-leaf swing
• Actuator type: Linear electromechanical, with permanent grease lubrication and non-reversible operation
• Maximum door leaf weight: 250 kg
• Maximum door leaf width: 3 m
• Maximum width without an electric lock: 2.5 m
• Maximum opening angle: 108°
• Useful piston stroke: 40 cm
• Motor operating voltage: 230 Vac
• Motor power consumption: 230 W
• Supply current: 1.3 A
• Capacitor capacity: 8 μF
• Maximum force: 2300 N
• Maximum duty cycle: 25% - S3
• Opening and closing cycles per hour: Up to 20 at 20°C
• Motor speed: 1400 rpm
• Operating temperature range: From -25°C to +65°C
• Motor winding thermal protection: 120°C
• Thermal reset time: 5 min
• Protection rating: IP54
• Motor weight: 5 kg
• Housing material: Aluminum
• Housing color: Black
• Control board: 1 unit, with receiver in a waterproof plastic enclosure
• Motor: 1 unit
• Remote controls: 2 wireless
• Safety photocells: 1 wired set with transmitter and receiver
• Mounting brackets: Motor brackets and pins included
• Release key: 1 hex key
• Capacitor: 1 unit, 8 μF
• CE declaration of conformity: Yes
• Country of manufacture: Portugal
