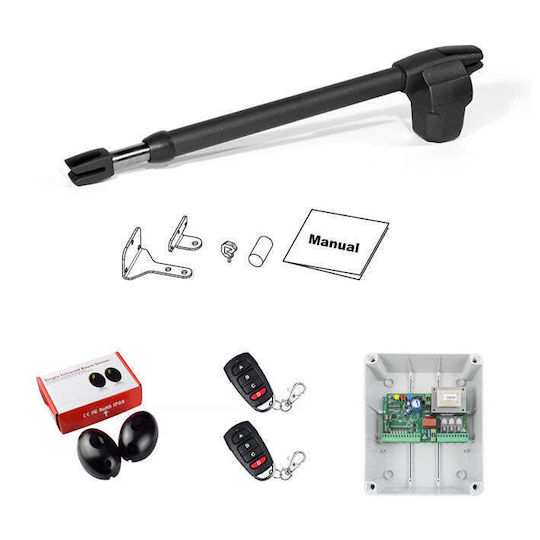

The Motorline LINCE400-D-e4-FULL-KIT motor kit automates a single-leaf swing gate with a maximum weight of 250 kg and a width of up to 3 m. It includes a linear electromechanical operator with a 230 W motor and an electronic control unit in a weatherproof plastic enclosure. The control unit has a receiver, and the kit also includes two wireless remote controls and wired safety photocells.

The useful piston stroke is 40 cm, and the maximum opening angle is 108°. The operator uses permanent grease lubrication and can be disengaged with a hex key for manual opening and closing in the event of a power outage. An electric lock is required for gate leaves wider than 2.5 m.

• Gate type: Single-leaf swing
• Operator type: Linear, electromechanical, non-reversible
• Maximum gate leaf weight: 250 kg
• Maximum gate leaf width: 3 m
• Maximum width without an electric lock: 2.5 m
• Maximum opening angle: 108°
• Useful piston stroke: 40 cm
• Operating voltage: 230 Vac, single-phase
• Motor power: 230 W
• Supply current: 1.3 A
• Capacitor capacity: 8 μF
• Maximum force: 2300 N
• Maximum duty cycle: 25% - S3
• Opening and closing cycles per hour: Up to 20 at 20 °C
• Motor speed: 1400 rpm
• Operating temperature: From -25 °C to +65 °C
• Protection rating: IP54
• Housing material: Aluminium
• Housing colour: Black
• Control unit: 1 unit, in a weatherproof plastic enclosure
• Remote controls: 2 wireless
• Safety photocells: Wired, with transmitter and receiver
• Motors: 1 unit
• Release method: With a hex key
• Package contents: Mounting brackets and pins, 8 μF capacitor, release key and installation instructions
