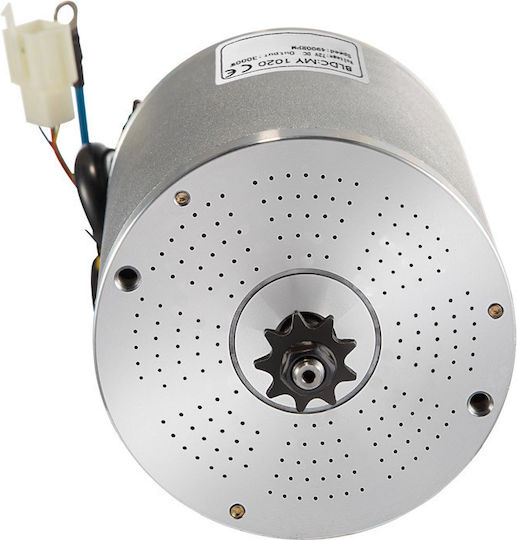

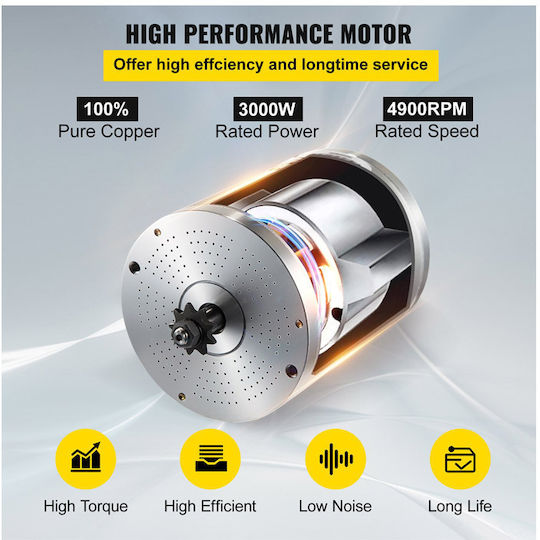

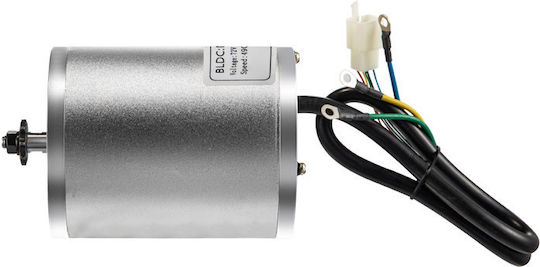

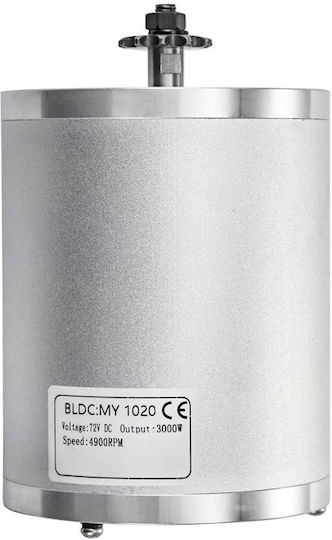

The VEVOR brushless electric motor is constructed with a 100% copper core for low noise operation and high work efficiency. It features an aluminum alloy shell that is resistant to oxidation and vibrations. It is ideal for carts, electric scooters, electric bicycles, ATVs, and motorized bicycles.

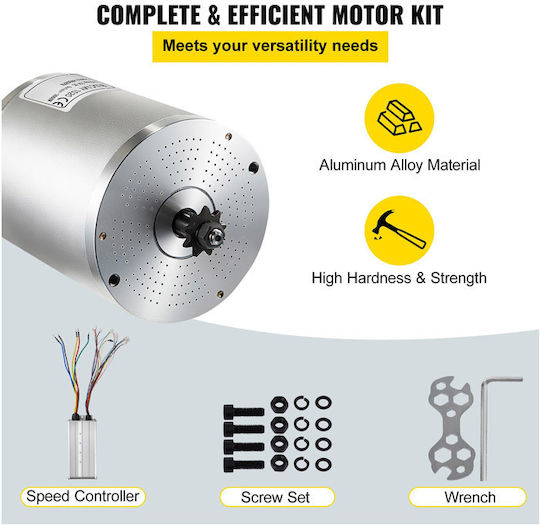

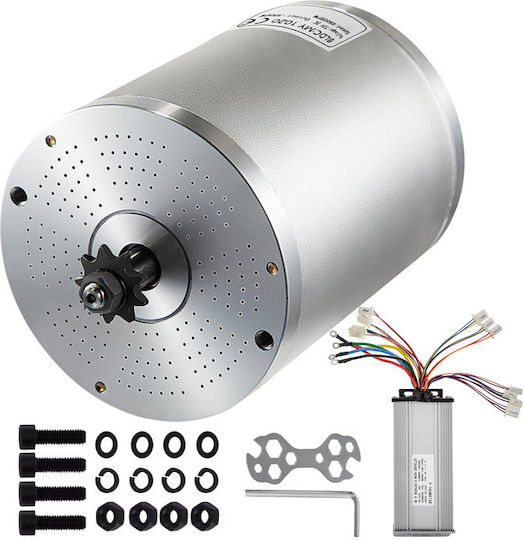

The product includes:
- Electric motor
- 3-speed switch
- Rotary throttle grip
- Speed controller
- Key ignition
- Set of mounting screws
Specifications:
- Input voltage: 72V DC
- Output power: 3000W
- Nominal current: 43A

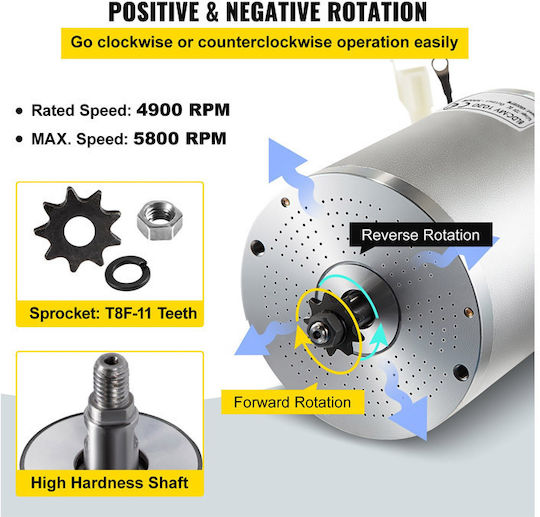

- Nominal speed: 4900 RPM
- Maximum speed: 5800 RPM
- Gearing: T8F-11 teeth
- Horsepower: 4.07 HP
- Nominal torque: 6 N.m
- Maximum current: 65A
- No-load current: ≤ 4.5A
- Maximum efficiency: ≥ 85%
- Operating temperature: < 120 °C
- Axle length: 134 mm
- Axle diameter: 12 mm
- Motor diameter: 107 mm
- Length (without axle): 135 mm
- Length (with axle): 160 mm
- Net weight of motor: 4.7 Kg

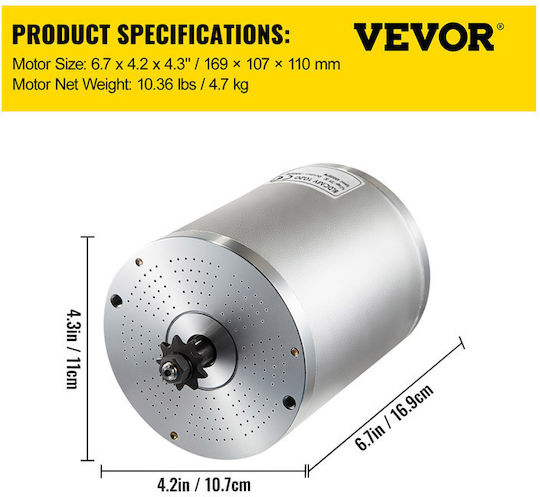

- Dimensions: 169 x 107 x 110 mm

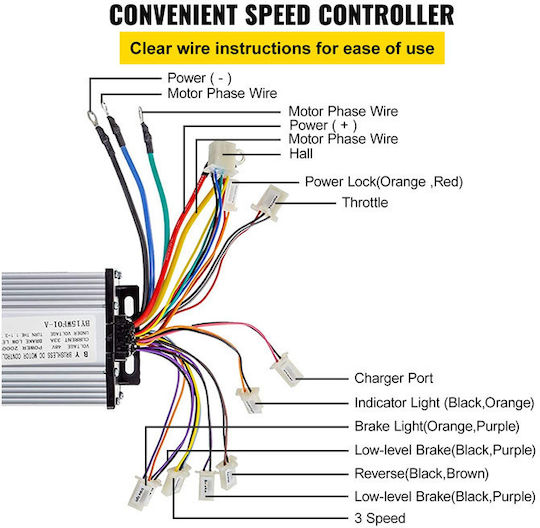

- Controller model: BY24WF01-B
- Controller current: 65A
- Controller phase degree: 120°
- Controller conversion efficiency: 90%
- Product Number
- ZLDJWS3KW72VWZDKZV9
- Type
- Switch
- Features
- -
