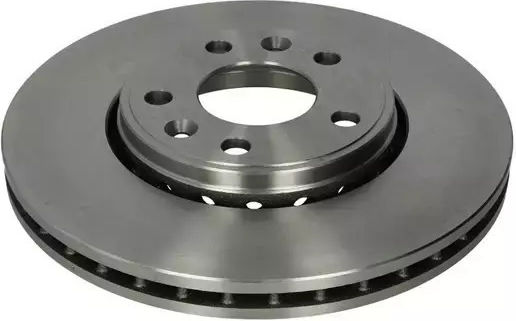

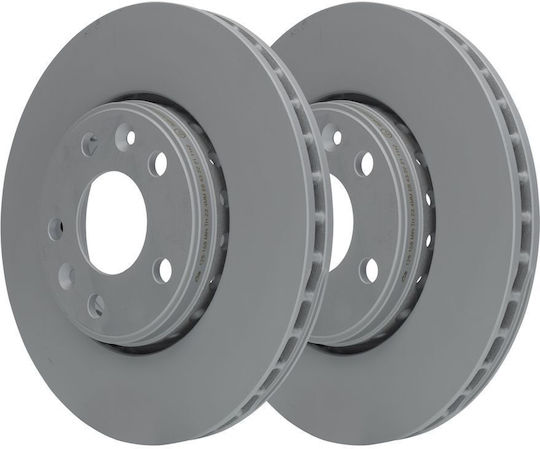

Car Brakes: Disc Brake for RENAULT GRAND SCÉNIC III JZ0 1 ATE 24012601581
- Car Model: 1.5 dCi engine 1461cc 81KW
- Year: 2009 - present
- Product Code: 24012601581
- Manufacturer: ATE

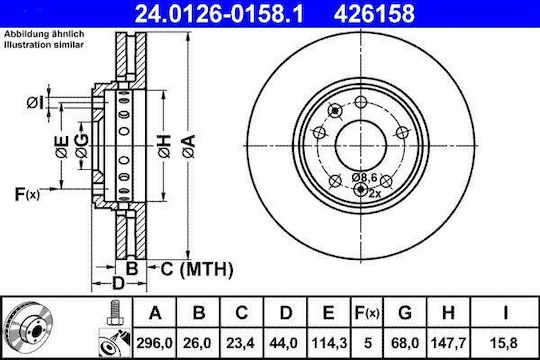

- Diameter [mm]: 296
- Disc Thickness [mm]: 26
- Minimum Thickness [mm]: 23.4
- Disc Type: ventilated
- Material: alloy / hardened
- Surface: coated (with protective layer)
- Number of Holes: 5
- Hole Arrangement Diameter [mm]: 114.3
- Height [mm]: 44
- Centering Diameter [mm]: 68
- Inner Diameter [mm]: 147.7
- Diameter [mm]: 15.8
- Information: includes screws MAPP code available
- Installation Direction: front axle
- Equivalent Codes: 426158 RENAULT: 402060002R RENAULT: 402066813R RENAULT: 402067023R BENDIX: 562595BC BOSCH: 0986479551 CAR: 1421493 CIFAM: 800942 DELPHI: BG4264 FERODO: DDF1726 GRAF: DF29942 HELLA: 8DD355
