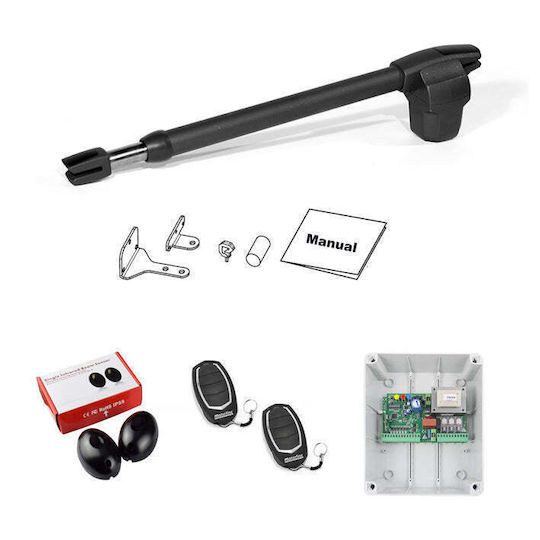

The Motorline LINCE400-D-falk-FULL-KIT motor kit automates a single-leaf swing garage door with a gate leaf weighing up to 250 kg and measuring up to 3 m wide. It includes a 230 W linear electromechanical actuator, an electronic control board with receiver in a weatherproof plastic enclosure, and two wireless remote controls. The actuator is non-reversible, permanently lubricated with grease, and has a usable piston stroke of 400 mm.

The kit also includes safety photocells, mounting brackets and pins, an 8 μF capacitor, a release key, and installation instructions. In the event of a power outage, the door can be operated manually after disengaging the actuator with the hex key. An electric lock is required for gate leaves wider than 2.5 m.

• Door type: Single-leaf swing
• Actuator type: Linear, electromechanical, non-reversible, permanently lubricated with grease
• Maximum gate leaf weight: 250 kg
• Maximum gate leaf width: 3 m
• Maximum width without an electric lock: 2.5 m
• Direction: Right
• Motor power: 230 W
• Operating voltage: 230 Vac, single-phase
• Supply current: 1.3 A
• Capacitor capacity: 8 μF
• Maximum force: 2300 N
• Operating frequency: 25% - S3
• Opening/closing cycles per hour: Up to 20 at 20°C
• Motor speed: 1400 rpm
• Operating temperature: From -25°C to +65°C
• Winding thermal protection: 120°C
• Thermal reset time: 5 min
• Usable piston stroke: 400 mm
• Hinge-to-hinge distance with piston retracted: 747 mm
• Hinge-to-hinge distance with piston extended: 1162 mm
• Maximum linear speed: 0.018 m/sec
• Opening/closing time: From 13 sec to 180 sec
• Release method: Hex key
• Protection rating: IP54
• Enclosure material: Aluminum
• Enclosure color: Black
• Control board: 1
• Remote controls: 2 wireless
• Safety photocells: 1 wired set
• Safety beacon: 1
• External antenna: 1
• Motor: 1
• Package contents: Mounting brackets and pins, 8 μF capacitor, release key, installation instructions
• Country of manufacture: Portugal
• Declaration of conformity: CE
