Misc Pipe Connections

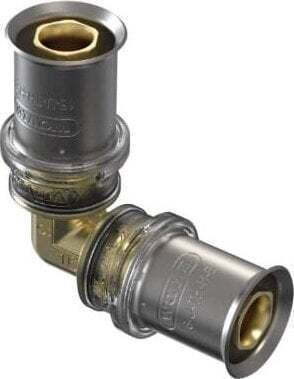

Wavin Pipe Connection 16mm 4064199

The Wavin Tigris M5 pipe fitting is a 90° brass elbow for hot and cold water systems, central heating and underfloor heating. It uses a press-fit connection, and its 50% larger cross-section improves...

The Wavin Tigris M5 pipe fitting is a 90° brass elbow for hot and cold water systems, central heating and underfloor heating. It uses a press-fit connection, and its 50% larger cross-section improves hydraulic performance. The ACOUSTIC LEAK ALERT feature emits an 80 dB whistling sound in the event of a leak.

  • Diameter: 16 mm
  • Material: Brass
  • Angle: 90°
  • ...
See Description & Specifications See Description & Specifications
24 86 €
Delivery Mon, 23 Nov - Wed, 25 Nov
4,50 € shipping cost
Sent from Greece
From Getters 4.5 (115)
Greece
20+ pieces
See Hose Connections on the page of Getters
What if I want to return it?

You can return it for free within 14 days. We will come to your place, return it for free, and you will get your money back.

Learn more about invoicing
Questions

Description & Specifications

The Wavin Tigris M5 pipe fitting is a 90° brass elbow for hot and cold water systems, central heating and underfloor heating. It uses a press-fit connection, and its 50% larger cross-section improves hydraulic performance. The ACOUSTIC LEAK ALERT feature emits an 80 dB whistling sound in the event of a leak.

  • Diameter: 16 mm
  • Material: Brass
  • Angle: 90°
  • Connection: Press-fit
  • Leak alert feature: ACOUSTIC LEAK ALERT with an 80 dB whistling sound
  • Hydraulic performance: 50% larger cross-section
  • Compatibility: Tigris M1
  • Wall thickness: 7.4 mm
  • Maximum operating pressure at 70°C: 10 BAR
  • Maximum operating temperature: 95°C intermittent and 110°C emergency temperature for PE-Xc/AL/PE-HD pipes; 90°C for PERT/EVOH/PERT pipes
  • Length: 0.053 m
  • Weight: 0.100 kg

Manufacturer

Specifications

Multilayer Pipe
No
America
-

Dimensions

Diameter
16 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

24,86 €
4,50 €   shipping cost
