Description
Specifications

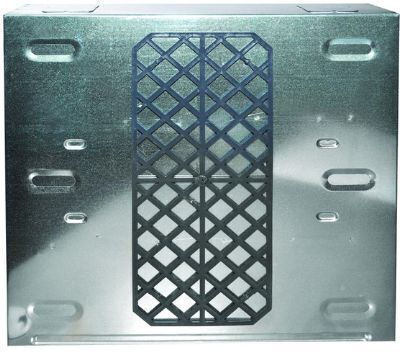

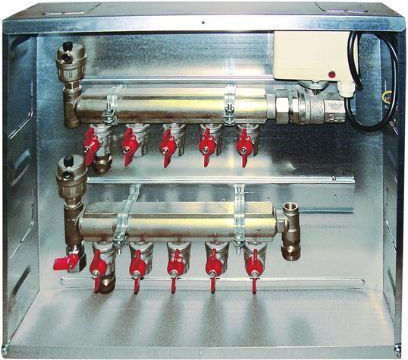

Galvanized Water Intake Panel EN10142 made from galvanized steel EN10142 with a thickness of 0.70mm & 0.80mm. Includes collector brackets (2.00mm thick) and the door (white RAL 9010).
Quality control through the ISO 9001:2015 management systems of SGS TUV SAAR.
The package includes:

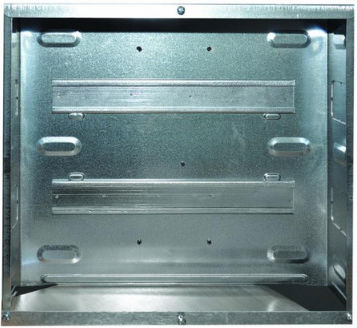

- Body
- Door
- Support blade for the cover (connection with two screws)
- Set of collector supports (4 supports, 4 screws 1/4”X1”, 4 nuts 1/4, 2 sheet metal screws 12X1/2" for the support of the cover and 2 sheet metal screws for the support of the blade)
Dimensions:
- HEIGHT: 450 mm, WIDTH: 250 mm, DEPTH: 110 mm, CONNECTIONS: 3
- HEIGHT: 450 mm, WIDTH: 350 mm, DEPTH: 110 mm, CONNECTIONS: 5
- HEIGHT: 450 mm, WIDTH: 400 mm, DEPTH: 110 mm, CONNECTIONS: 6
- HEIGHT: 450 mm, WIDTH: 450 mm, DEPTH: 110 mm, CONNECTIONS: 7
- HEIGHT: 450 mm, WIDTH: 500 mm, DEPTH: 110 mm, CONNECTIONS: 8
- HEIGHT: 450 mm, WIDTH: 550 mm, DEPTH: 110 mm, CONNECTIONS: 9
- HEIGHT: 450 mm, WIDTH: 600 mm, DEPTH: 110 mm, CONNECTIONS: 10
- HEIGHT: 450 mm, WIDTH: 700 mm, DEPTH: 110 mm, CONNECTIONS: 12
- HEIGHT: 450 mm, WIDTH: 800 mm, DEPTH: 110 mm, CONNECTIONS: 14
- Type
- Water table
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
