Morek Electrical Component MAA2095P10

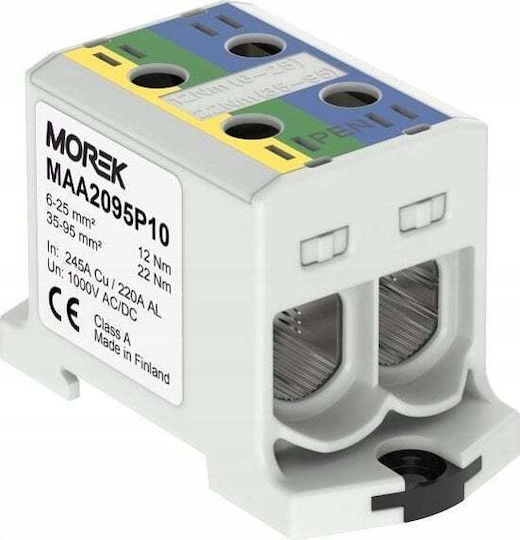

Terminal .OTL-PEN95 yellow-green, blue 2xAl/Cu 6-95mm² 1000V General terminal for TN-C-S installations MAA2095P10.

General-purpose terminals for copper and aluminum cables. OTL general-purpose...

Terminal .OTL-PEN95 yellow-green, blue 2xAl/Cu 6-95mm² 1000V General terminal for TN-C-S installations MAA2095P10.

General-purpose terminals for copper and aluminum cables. OTL general-purpose connectors are designed for connecting copper and aluminum. The connectors can be used to connect AL or CU cables with an internal cross-section of up to 240 mm².

...

See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

Terminal .OTL-PEN95 yellow-green, blue 2xAl/Cu 6-95mm² 1000V General terminal for TN-C-S installations MAA2095P10.

General-purpose terminals for copper and aluminum cables. OTL general-purpose connectors are designed for connecting copper and aluminum. The connectors can be used to connect AL or CU cables with an internal cross-section of up to 240 mm².

Specifications:

  • CODE: MAA2095P10
  • Color: Yellow-green/blue
  • Minimum cable cross-section: 6 mm²
  • Maximum cable cross-section: 95 mm²
  • Nominal current: 245 A (Cu) / 220 A (Al)
  • Nominal voltage: 1000 V
  • Operating temperature: 80 °C
  • Material: Aluminum with tin coating, polyamide PA66
  • IP rating: IP20
  • Certifications: EN 61238-1; EN60947-7-1; UL1059

Manufacturer

See full description
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description

Terminal .OTL-PEN95 yellow-green, blue 2xAl/Cu 6-95mm² 1000V General terminal for TN-C-S installations MAA2095P10.

General-purpose terminals for copper and aluminum cables. OTL general-purpose connectors are designed for connecting copper and aluminum. The connectors can be used to connect AL or CU cables with an internal cross-section of up to 240 mm².

Specifications:

  • CODE: MAA2095P10
  • Color: Yellow-green/blue
  • Minimum cable cross-section: 6 mm²
  • Maximum cable cross-section: 95 mm²
  • Nominal current: 245 A (Cu) / 220 A (Al)
  • Nominal voltage: 1000 V
  • Operating temperature: 80 °C
  • Material: Aluminum with tin coating, polyamide PA66
  • IP rating: IP20
  • Certifications: EN 61238-1; EN60947-7-1; UL1059

Manufacturer

Morek - Electrical Supplies Morek
