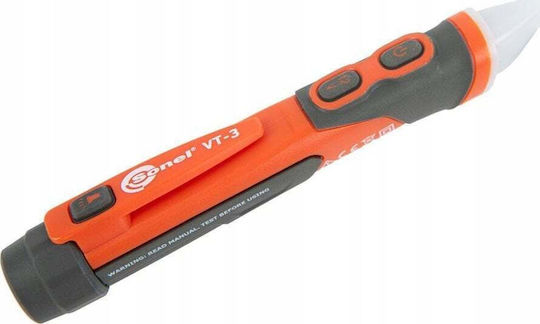

The Sonel WMPLVT3 voltage detector detects alternating voltage without contact and alerts with visual and audible signals. It features a durable two-component housing, an IP67 protection rating, and two LED lights: a front light for the measuring point and a rear light for use as a flashlight.
- Detection type: Non-contact
- Current: Alternating (AC)
- Detection range: 12 V / 100–1000 V AC
- Indicators: Green, orange, and red LED, audible signal
- Lighting: Front LED for the measuring point and rear white LED with flashlight
- Housing: Two-component
- Protection rating: IP67
- Power supply: 2 × 1.5 V AAA batteries
- Frequency range: 50 / 60 Hz
- Automatic switch-off: After 5 minutes of inactivity
- Operating altitude: Up to 2000 m
- Dimensions: 160 × 23 × 25 mm
- Weight: 78 g, 55 g without battery
- Compliance: EMC, LVD
- Operating temperature: 0 °C to +50 °C
- Maximum humidity: 80%
- Storage temperature: -10 °C to +60 °C
- Measurement category: IV 1000 V, according to PN-EN 61010 - 12004
- Pollution degree: 2
- Type of Current
- AC
- Min Voltage
- 12 V
- Max Voltage
- 12 V
- NCV
- No
- with Buzzer
- No
