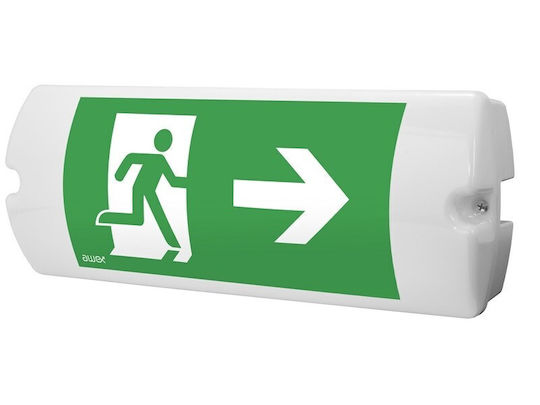

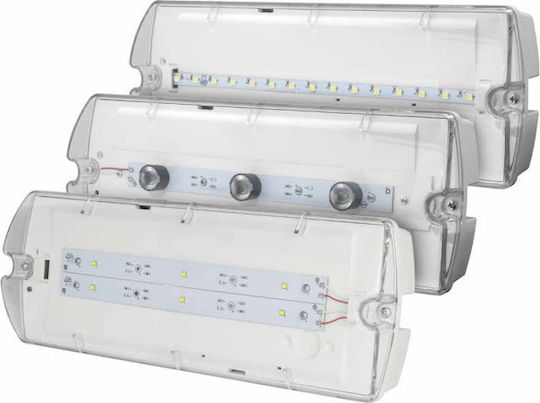

The HELIOS LED emergency lighting series consists of three unique products that use different LED light sources, allowing for easy design of the optimal installation for each case.

• HWM – for low and medium heights.
• HWS – designed for medium heights.
• HWD – designed for high altitudes.

The durable housing with an IP42 or IP65 waterproof rating and a high impact resistance factor (IK08) guarantees long life, even in the most difficult conditions.

Adaptability for operation in negative temperatures: up to -25˚C. The luminaire can be configured as:

• Luminaire for central battery system.
• Monitoring system, equipped with self-test function.
• Standard standalone version.

Power supply voltage:

• Standalone luminaire – 220÷240VAC/50÷60Hz.
• Central battery CB accessory – 220÷240VAC/50÷60Hz; 176 – 275 VDC.
• Central battery FZLV accessory – 24VDC.

Light source: LED power 3W, 3x1W, 6x1W.

Charging time:

• Standard: maximum 24 hours.
• Premium: maximum 12 hours.

Backup time:

• Standard: 1 hour or 3 hours.
• Premium: 1 hour or 3 hours.

Batteries:

• Ni-Cd 3.6V.
• LiFePO4 6.4V.

Options:

• NA – emergency (dark).
• SA – network and emergency (light).
• PT – test button.
• AT – self-test.
• RU – Emergency lighting monitoring system.

Additional information:

• LED diode indicating the presence of voltage and battery charging.
• Deep discharge protection.
• Impact resistance factor (IK08).
• Luminaire in protection class III for low voltage central battery systems (FZLV).
