Morek Electrical Component MAA3050A10

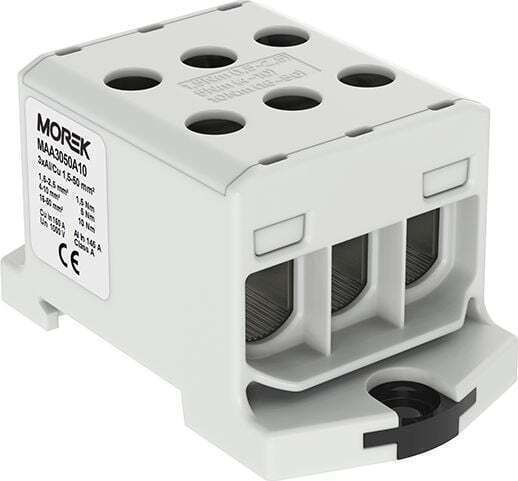

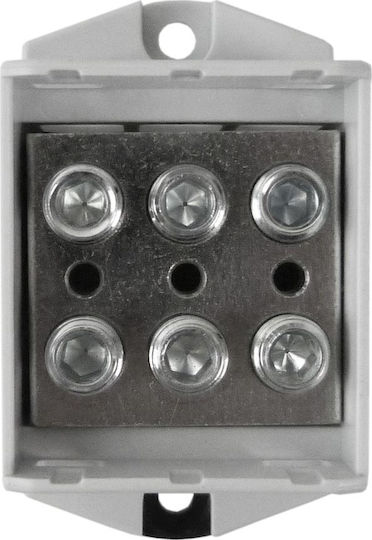

Rail terminal block 1.5-50mm2 gray 6 holes AL/CU, designed for simultaneous connection of aluminum and copper wires or only aluminum or only copper.

  • Wire cross-section: 3x from 1.5 to 50 mm2
  • Rated...

Rail terminal block 1.5-50mm2 gray 6 holes AL/CU, designed for simultaneous connection of aluminum and copper wires or only aluminum or only copper.

  • Wire cross-section: 3x from 1.5 to 50 mm2
  • Rated voltage: 1000V AC/DC
  • Rated current: 3x Al - 145 A, 3x Cu - 160 A
  • Tightening torque:
    • 1.5 Nm (1.5 - 2.5 mm2)
    • 5 Nm (4 -10 mm2)
    • 10 Nm (16 -50 mm2)
  • Installation: TH...
See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

Rail terminal block 1.5-50mm2 gray 6 holes AL/CU, designed for simultaneous connection of aluminum and copper wires or only aluminum or only copper.

  • Wire cross-section: 3x from 1.5 to 50 mm2
  • Rated voltage: 1000V AC/DC
  • Rated current: 3x Al - 145 A, 3x Cu - 160 A
  • Tightening torque:
    • 1.5 Nm (1.5 - 2.5 mm2)
    • 5 Nm (4 -10 mm2)
    • 10 Nm (16 -50 mm2)
  • Installation: TH 35 rail or mounting plate
  • Connection material:
    • Insulating cover (body): polyamide PA66
    • Conductive parts: tinned aluminum screw (tinned aluminum)
    • Contact surfaces: contact paste
  • External dimensions: H: 105 mm, W: 155 mm, D: 210 mm, AV: 5mm
  • Color: gray
  • Weight: 1808 g
  • Protection degree: IP20
  • Operating temperature: from -25°C to +80°C
  • Flammability rating (vertical burning test): UL 94 V-0, halogen-free
  • Standards: EN 61238-1, EN 60947-7-1, EN 60998-2-1, CE
  • Country of production: Finland
  • Manufacturer: Morek
  • Product code: MAA3050A10

Manufacturer

See full description

Specifications

Specifications

Type
Connector

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Rail terminal block 1.5-50mm2 gray 6 holes AL/CU, designed for simultaneous connection of aluminum and copper wires or only aluminum or only copper.

  • Wire cross-section: 3x from 1.5 to 50 mm2
  • Rated voltage: 1000V AC/DC
  • Rated current: 3x Al - 145 A, 3x Cu - 160 A
  • Tightening torque:
    • 1.5 Nm (1.5 - 2.5 mm2)
    • 5 Nm (4 -10 mm2)
    • 10 Nm (16 -50 mm2)
  • Installation: TH 35 rail or mounting plate
  • Connection material:
    • Insulating cover (body): polyamide PA66
    • Conductive parts: tinned aluminum screw (tinned aluminum)
    • Contact surfaces: contact paste
  • External dimensions: H: 105 mm, W: 155 mm, D: 210 mm, AV: 5mm
  • Color: gray
  • Weight: 1808 g
  • Protection degree: IP20
  • Operating temperature: from -25°C to +80°C
  • Flammability rating (vertical burning test): UL 94 V-0, halogen-free
  • Standards: EN 61238-1, EN 60947-7-1, EN 60998-2-1, CE
  • Country of production: Finland
  • Manufacturer: Morek
  • Product code: MAA3050A10

Manufacturer

Type
Connector

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

34,45 €
