Morek Connector MAA2035Y10
Electrical Supplies

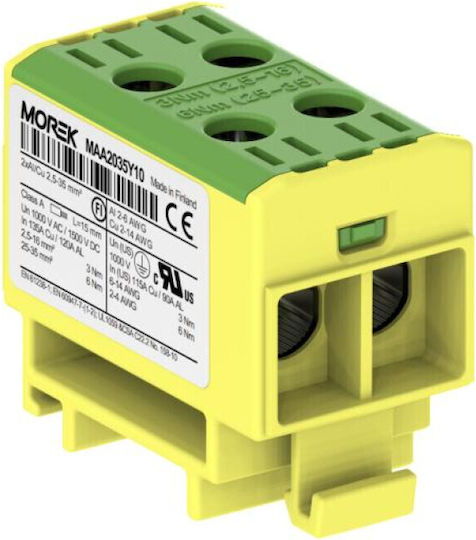

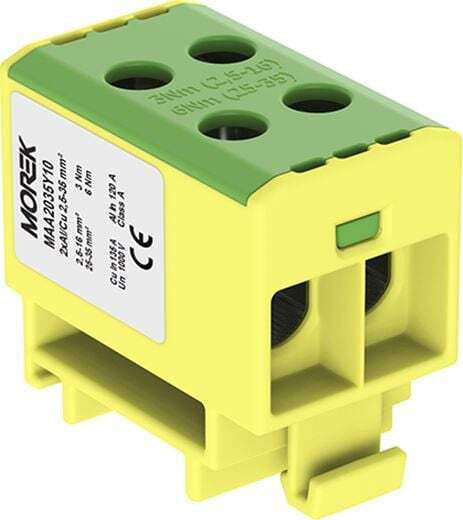

Morek Connector MAA2035Y10

Rail terminal block 2.5-35mm2 green-yellow with 4 terminal holes. It features 1 AL/CU rail with a thread rating of 1000V, suitable for TH35 rail.

Features:

  • Allows simultaneous connection of aluminum...

Rail terminal block 2.5-35mm2 green-yellow with 4 terminal holes. It features 1 AL/CU rail with a thread rating of 1000V, suitable for TH35 rail.

Features:

  • Allows simultaneous connection of aluminum and copper wires or only aluminum or only copper.
  • Wire cross-section: 2 x from 2.5 to 35 mm2
  • Nominal voltage: 1000V AC/DC
  • Nominal current: 2x Al - 120 A, 2x Cu...
See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

Rail terminal block 2.5-35mm2 green-yellow with 4 terminal holes. It features 1 AL/CU rail with a thread rating of 1000V, suitable for TH35 rail.

Features:

  • Allows simultaneous connection of aluminum and copper wires or only aluminum or only copper.
  • Wire cross-section: 2 x from 2.5 to 35 mm2
  • Nominal voltage: 1000V AC/DC
  • Nominal current: 2x Al - 120 A, 2x Cu - 135 A
  • Torque: 3 Nm (2.5 - 16 mm2), 6 Nm (25 - 35 mm2)
  • Installation: TH 35 rail or support plate with hex key (IMBUS) size 4
  • Connection material: insulating cover (body) polyamide PA66, conductive parts: tin-plated aluminum screw.
  • External dimensions: H: 40 mm, W: 27 mm, L: 46 mm, AV: 4 mm
  • Color: green-yellow
  • Weight: 44 g
  • Protection rating: IP20
  • Operating temperature: from -25°C to +80°C
  • Flammability category: UL 94 V-0 halogen-free
  • Standards: EN 61238-1, EN 60947-7-1, EN 60998-2-1, CE
  • Country of manufacture: Finland
  • Manufacturer: Morek
  • Product type: OTL 35-2
  • Product code: MAA2035Y10
  • EAN: 4744397014054
  • Wire cross-section (mm2)/number of wires: AL 1, CU 3 for 0.75-35 mm2.
