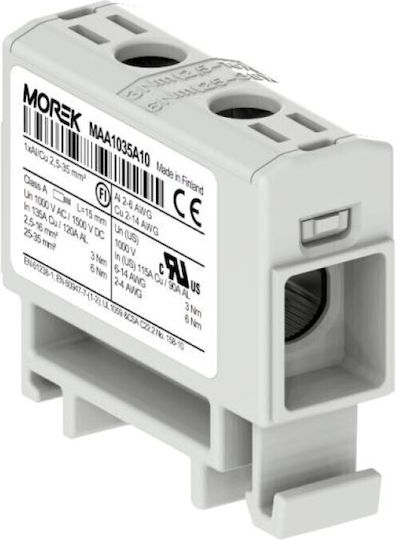

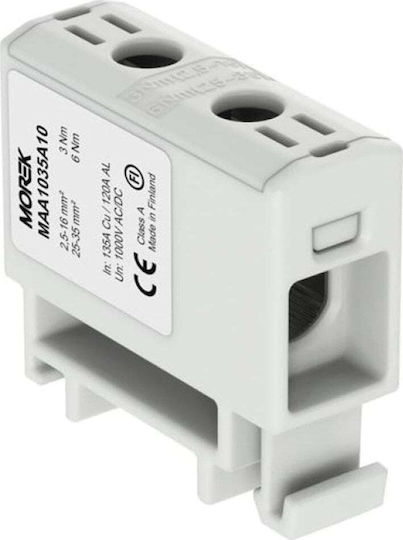

General purpose box OTL35, blue, 1xAl/Cu 2.5-35mm² 1000V. The OTL general purpose boxes are designed for copper and aluminum wires and are suitable for all types of wires with a cross-section of up to 300 mm². Multiple copper conductors can be installed in these boxes depending on the type of box.
Features:
- Protection class: IP20
- Color: Blue
- Cable: Al/Cu
- Min. cable cross-section: 2.5 mm²
- Max. cable cross-section: 35 mm²
- Number of connections: 2
- Rated current: 135 (Cu) / 120 (Al) A
- Rated voltage: 1000 V
- Operating temperature: 80 °C
- Material: Tinned aluminum, polyamide PA66
- Assembly: DIN rail
- Dimensions: Width - 16 mm, Length - 45 mm, Height - 40 mm
- Weight: 27 g
- Screw: Hex 4
- Torque: 3 Nm (2.5 - 16 mm²), 6 Nm (25 - 35 mm²)
- IP rating: IP20
- Certifications: EN 61238-1; EN 60947-7-1; UL1059
- Flammability category: UL94 V0
The general connector OTL is designed to connect copper and aluminum conductors in a box and can simultaneously use wires from both materials or only copper wires or only aluminum.
- Type
- Connector
