Industrial Relays

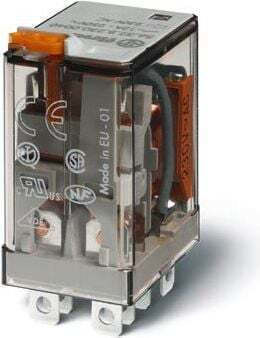

Finder Industrial Relay Relay 230V 56.32.8.230.0040

2P Relay 12A 230V AC test button with mechanical activation indication (56.32.8.230.0040)

  • Size: 20.7 x 27.7 x 37.2 mm
  • Number of contacts: 2P
  • Operating temperature °C: -40 to +70
  • Protection level: RT...

2P Relay 12A 230V AC test button with mechanical activation indication (56.32.8.230.0040)

  • Size: 20.7 x 27.7 x 37.2 mm
  • Number of contacts: 2P
  • Operating temperature °C: -40 to +70
  • Protection level: RT I
  • Rated current: 12A
  • Maximum switching current: 20A
  • Installation: socket
  • Relay series: 56.32
  • Relay type: electromechanical
  • Contact configuration: DPDT
  • Coil...
See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Description

Description

2P Relay 12A 230V AC test button with mechanical activation indication (56.32.8.230.0040)

  • Size: 20.7 x 27.7 x 37.2 mm
  • Number of contacts: 2P
  • Operating temperature °C: -40 to +70
  • Protection level: RT I
  • Rated current: 12A
  • Maximum switching current: 20A
  • Installation: socket
  • Relay series: 56.32
  • Relay type: electromechanical
  • Contact configuration: DPDT
  • Coil nominal voltage: 230V AC
  • Relay version: miniature
  • Coil resistance: 17kΩ
  • Power consumption from the coil: 1W
  • Contact material: AgNi
  • Coil current: 6mA
  • Rated voltage: 250V AC
  • Maximum switching voltage: 400V AC

Manufacturer

See full description

Specifications

Specifications

Type
Relay
Voltage
230 V

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

2P Relay 12A 230V AC test button with mechanical activation indication (56.32.8.230.0040)

  • Size: 20.7 x 27.7 x 37.2 mm
  • Number of contacts: 2P
  • Operating temperature °C: -40 to +70
  • Protection level: RT I
  • Rated current: 12A
  • Maximum switching current: 20A
  • Installation: socket
  • Relay series: 56.32
  • Relay type: electromechanical
  • Contact configuration: DPDT
  • Coil nominal voltage: 230V AC
  • Relay version: miniature
  • Coil resistance: 17kΩ
  • Power consumption from the coil: 1W
  • Contact material: AgNi
  • Coil current: 6mA
  • Rated voltage: 250V AC
  • Maximum switching voltage: 400V AC

Manufacturer

Type
Relay
Voltage
230 V

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
