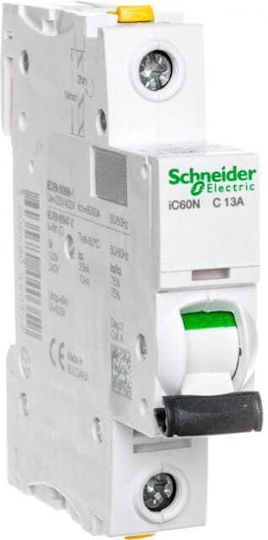

Schneider Electric Automatic Circuit Breaker Single-pole AC/DC A9F04113
Automatic Circuit Breaker

Schneider Electric Automatic Circuit Breaker Single-pole AC/DC A9F04113

Automatic Circuit Breaker iC60N 1P 13A C - A9F04113

  • Application Change: Chapter
  • Series: Acti 9
  • Product Type: Switch
  • Product Name: LJ
  • Number of Poles: 1P
  • Number of Protected Poles: 1
  • Rated Current:...

Automatic Circuit Breaker iC60N 1P 13A C - A9F04113

  • Application Change: Chapter
  • Series: Acti 9
  • Product Type: Switch
  • Product Name: LJ
  • Number of Poles: 1P
  • Number of Protected Poles: 1
  • Rated Current: 13A
  • Network Type: AC/DC
  • Trigger Technology: Thermal Magnetic
  • Breaking Capacity: 20 kA Icu according to EN 60947-2
  • Use Category: Category A according to IEC...
See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

Automatic Circuit Breaker iC60N 1P 13A C - A9F04113

  • Application Change: Chapter
  • Series: Acti 9
  • Product Type: Switch
  • Product Name: LJ
  • Number of Poles: 1P
  • Number of Protected Poles: 1
  • Rated Current: 13A
  • Network Type: AC/DC
  • Trigger Technology: Thermal Magnetic
  • Breaking Capacity: 20 kA Icu according to EN 60947-2
  • Use Category: Category A according to IEC 60898-1
  • Isolation Function: Yes according to IEC 60947-2
  • Network Frequency: 50/60 Hz
  • Contact Position Indication: Yes
  • Assembly Method: DIN rail 9 mm width
  • Height: 91 mm
  • Width: 18 mm
  • Depth: 78.5 mm
  • Product Weight: 0.125 kg
  • Color: White
  • Mechanical Endurance: 20000 cycles
  • Electrical Endurance: 10000 cycles
  • Terminal Type: Double terminal, top or bottom
  • Tightening Torque: 2 N.m top or bottom
  • Protection Level: IP20 according to EN 60529
  • Pollution Degree: 3
  • Surge Category: IV
  • Relative Humidity: 95% (55°C)
  • Operating Ambient Temperature: -35...70 °C
  • Storage Ambient Temperature: -40...85 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
1
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Automatic Circuit Breaker iC60N 1P 13A C - A9F04113

  • Application Change: Chapter
  • Series: Acti 9
  • Product Type: Switch
  • Product Name: LJ
  • Number of Poles: 1P
  • Number of Protected Poles: 1
  • Rated Current: 13A
  • Network Type: AC/DC
  • Trigger Technology: Thermal Magnetic
  • Breaking Capacity: 20 kA Icu according to EN 60947-2
  • Use Category: Category A according to IEC 60898-1
  • Isolation Function: Yes according to IEC 60947-2
  • Network Frequency: 50/60 Hz
  • Contact Position Indication: Yes
  • Assembly Method: DIN rail 9 mm width
  • Height: 91 mm
  • Width: 18 mm
  • Depth: 78.5 mm
  • Product Weight: 0.125 kg
  • Color: White
  • Mechanical Endurance: 20000 cycles
  • Electrical Endurance: 10000 cycles
  • Terminal Type: Double terminal, top or bottom
  • Tightening Torque: 2 N.m top or bottom
  • Protection Level: IP20 according to EN 60529
  • Pollution Degree: 3
  • Surge Category: IV
  • Relative Humidity: 95% (55°C)
  • Operating Ambient Temperature: -35...70 °C
  • Storage Ambient Temperature: -40...85 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
1
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
