ETI Automatic Circuit Breaker 6A Double-pole AC/DC 002123712
Automatic Circuit Breaker

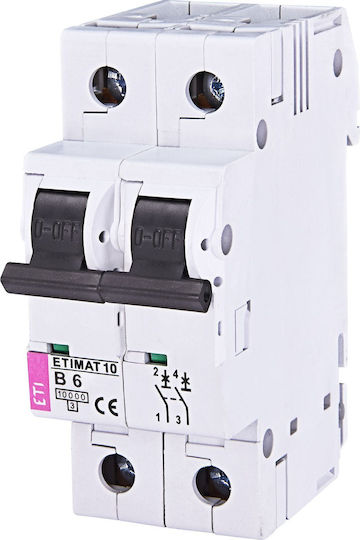

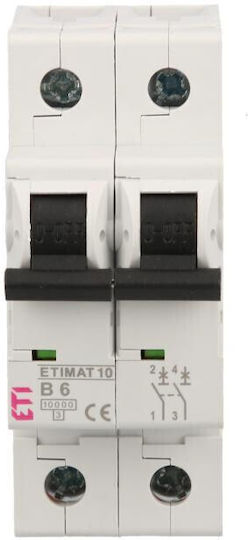

ETI Automatic Circuit Breaker 6A Double-pole AC/DC 002123712

Automatic Circuit Breakers ETIMAT 10

  • Code: 002123712
  • Weight: 0.26kg
  • Number of poles: 2
  • Rated current: 6A
  • Total short-circuit current: 10kA
  • Release characteristic: B
  • Rated voltage: 400V
  • Frequency:...

Automatic Circuit Breakers ETIMAT 10

  • Code: 002123712
  • Weight: 0.26kg
  • Number of poles: 2
  • Rated current: 6A
  • Total short-circuit current: 10kA
  • Release characteristic: B
  • Rated voltage: 400V
  • Frequency: 50Hz
  • Type of voltage: AC
  • Mounting depth: 68mm
  • Protection rating (IP): IP20
  • Energy limiting class: 3
  • Rated capacity according to EN 60898: 10kA
  • Can be extended: Yes...
See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

Automatic Circuit Breakers ETIMAT 10

  • Code: 002123712
  • Weight: 0.26kg
  • Number of poles: 2
  • Rated current: 6A
  • Total short-circuit current: 10kA
  • Release characteristic: B
  • Rated voltage: 400V
  • Frequency: 50Hz
  • Type of voltage: AC
  • Mounting depth: 68mm
  • Protection rating (IP): IP20
  • Energy limiting class: 3
  • Rated capacity according to EN 60898: 10kA
  • Can be extended: Yes

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
2
Rated Current
6 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Automatic Circuit Breakers ETIMAT 10

  • Code: 002123712
  • Weight: 0.26kg
  • Number of poles: 2
  • Rated current: 6A
  • Total short-circuit current: 10kA
  • Release characteristic: B
  • Rated voltage: 400V
  • Frequency: 50Hz
  • Type of voltage: AC
  • Mounting depth: 68mm
  • Protection rating (IP): IP20
  • Energy limiting class: 3
  • Rated capacity according to EN 60898: 10kA
  • Can be extended: Yes

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
2
Rated Current
6 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
