Description
Specifications

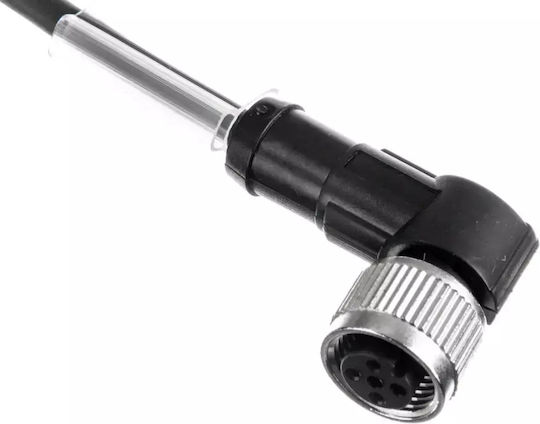

The Lapp Group cable connects actuators or operating elements and has a female M12 connector at one end and a free conductor end at the other. It has 3 contacts, A coding and a PVC- and halogen-free PUR sheath that is resistant to UV radiation, oils and chemicals. It is suitable for high mechanical loads, demanding working environments and installation in drag chains.
- Type: DIN
- Length: 5 m
- Quantity: 1
- Contacts: 3
- Connection: M12
- Coding: A
- Sheath material: PUR
- Sheath colour: Black
- Conductor cross-section: 0.34 mm²
- Protection rating: IP65/IP67/IP68
- Contacts: Gold-plated
- Vibration protection: Mechanical locking
- Resistance: To UV radiation, oils and chemicals
- Suitability: For drag chains
- Label holder: Included
- Halogen standard: DIN VDE 0472
- Flame resistance: UL 1581 FT-2
- Type
- Din
- Terminal A
- -
- Terminal B
- -
- Length
- 5 m
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
