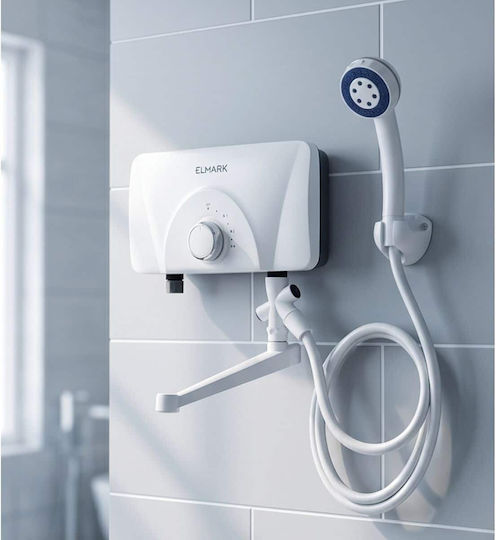

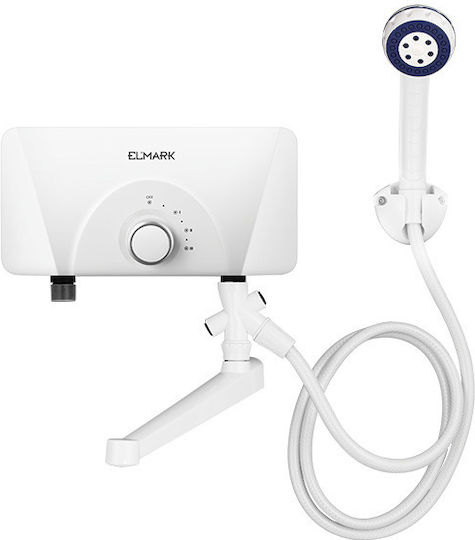

The Elmark EL70065-J wall-mounted instantaneous water heater heats water on demand and is installed above the sink. The temperature can be set to three levels using a rotary switch, while the copper heating tube is resistant to corrosion and limescale. It is suitable for areas with low water pressure.
- Power supply: Electric, single-phase
- Maximum power: 6.5 kW
- Rated voltage: 220–240 V AC
- Rated current: 30 A
- Maximum outlet temperature: 55 °C
- Maximum operating temperature: 95 °C
- Temperature settings: 3 levels
- Installation: Wall-mounted, above the sink
- Circuit type: Open circuit
- Minimum water flow rate: 2.5 L/min
- Minimum water pressure: 0.03 MPa
- Maximum water pressure: 0.3 MPa
- Operating pressure: 0 MPa
- Pipe connection: 1/2"
- Cable cross-section: 4 mm²
- Protection rating: IPX4, Class I
- Protection system: Power cut-off in the event of dry heating or overheating
- Energy class: A
- Annual energy consumption: 466.2 kWh/year
- Height: 15.9 cm
- Width: 27.2 cm
- Depth: 11.2 cm
- Product Number
- 300112
Product Details
- Power Source
- Electric Single Phase
- Maximum Power
- 6.5 kW
- Maximum Flow Rate
- -
- Maximum Temperature
- 55 °C
- Temperature Setting
- Heating Levels
- Placement
- Bathroom
- Wall Mounted
- Yes
- Inverter
- No
- Remote Control
- No
Energy Label
- Energy Class
- -
Dimensions
- Height
- 15.9 cm
- Width
- 27.2 cm
- Length
- 11.2 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
