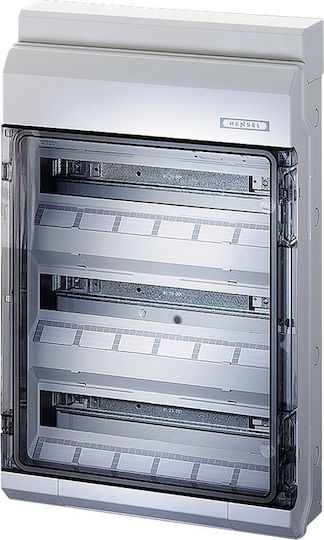

Hensel Wall mounted Waterproof 18-Elements Fuse Box with 3 Rows
Fuse Box

Hensel Wall mounted Waterproof 18-Elements Fuse Box with 3 Rows Code: 6100005

Wall-mounted fuse box 3 x 18 IP65 KV 9354 (6100005)

Description:

  • 54 modules: 3 x 18 x 18 mm
  • 3 rows for each of the possible PE and N switch combinations (quantity x cross-section)
  • 8 x 25 mm², 32 x 4...

Wall-mounted fuse box 3 x 18 IP65 KV 9354 (6100005)

Description:

  • 54 modules: 3 x 18 x 18 mm
  • 3 rows for each of the possible PE and N switch combinations (quantity x cross-section)
  • 8 x 25 mm², 32 x 4 mm², Cu, without screws FIXCONNECT
  • Can be divided into 4 different potential switches for installing devices on 35 mm rails
  • Transparent doors with locking and...
See Description & Specifications See Description & Specifications
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Questions
Review the product
Product report

Description & Specifications

Wall-mounted fuse box 3 x 18 IP65 KV 9354 (6100005)

Description:

  • 54 modules: 3 x 18 x 18 mm
  • 3 rows for each of the possible PE and N switch combinations (quantity x cross-section)
  • 8 x 25 mm², 32 x 4 mm², Cu, without screws FIXCONNECT®
  • Can be divided into 4 different potential switches for installing devices on 35 mm rails
  • Transparent doors with locking and sealing set
  • Cable entry protection with a cover that covers the hole for devices
  • Elastic membranes for cable entry
  • Protection index: IP 65
  • Color: gray, RAL 7035

Technical Data:

  • Rated insulation voltage Ui = 400 V a.c.
  • Maximum output power Pde = 50 W according to PN 60670-24
  • Protection class: II
  • Material: PS-polystyrene thermoplastic

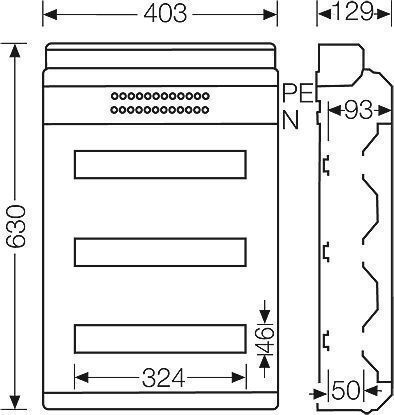

  • Width 403 mm
  • Height 630 mm
  • Depth 129 mm
  • Weight 4.656 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
6100005

Specifications

Placement
Wall mounted
Number of Rows
3
Number of Elements per Row
18
Colour
Grey
Protection Certification
IP65

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
403 mm
