Hager Phase 2-Pole Earth Leakage Relay 25A 230V
Phase Relays

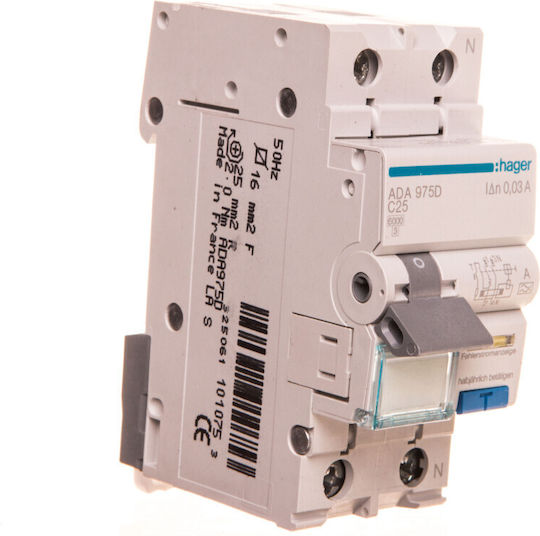

Hager Phase 2-Pole Earth Leakage Relay 25A 230V

Residual current circuit breaker 2P 25A C 0.03A type A (ADA975D)

  • Rated current: 25 A
  • Circuit breaker type: C
  • Rated short-circuit breaking capacity Icn: 6 kA
  • Residual current circuit breaker type: A
  • ...

Residual current circuit breaker 2P 25A C 0.03A type A (ADA975D)

  • Rated current: 25 A
  • Circuit breaker type: C
  • Rated short-circuit breaking capacity Icn: 6 kA
  • Residual current circuit breaker type: A
  • Rated residual current dI: 30 mA
  • Number of poles: 2 P
  • Number of modules: 2
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated...
See full description See full description

Αριθμός πόλων / ένταση

  1. 2x10A

    from 98,93 €

  2. 2x16A

    from 90,78 €

  3. 2x25A

    from 146,22 €

  4. 2x6A

    from 109,59 €

146 22 €
147 Coins 147 Coins
Delivery Thu, 23 Jul - Wed, 29 Jul
4,00 € to a Skroutz Point or 5,00 € to an address
Do you want it with Free shipping?
Sent from Greece
From Getters 4.5 (107)
4.5 (107 reviews)
Greece
6 pieces
See Electrical Panel Supplies on the page of Getters
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Residual current circuit breaker 2P 25A C 0.03A type A (ADA975D)

  • Rated current: 25 A
  • Circuit breaker type: C
  • Rated short-circuit breaking capacity Icn: 6 kA
  • Residual current circuit breaker type: A
  • Rated residual current dI: 30 mA
  • Number of poles: 2 P
  • Number of modules: 2
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated frequency: 50 Hz
  • Connection type: screw
  • Torque: 2.1 Nm
  • Total power loss at rated current: 9.3 W
  • Electrical endurance (number of cycles): 2000
  • Mechanical endurance (number of cycles): 2000
  • Number of wires: 1 / 16 mm²
  • Number of wires - stranded: 1 / 25 mm²
  • Operating temperature: -25 to 40 °C
  • Storage temperature: -25 to 70 °C
  • Installed product height: 83 mm
  • Installed product width: 35 mm
  • Installed product depth: 68 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Earth Leakage
Number of Poles
2
Voltage
230 V
Nominal Voltage
25 A
Leakage Current
30 mA
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Residual current circuit breaker 2P 25A C 0.03A type A (ADA975D)

  • Rated current: 25 A
  • Circuit breaker type: C
  • Rated short-circuit breaking capacity Icn: 6 kA
  • Residual current circuit breaker type: A
  • Rated residual current dI: 30 mA
  • Number of poles: 2 P
  • Number of modules: 2
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated frequency: 50 Hz
  • Connection type: screw
  • Torque: 2.1 Nm
  • Total power loss at rated current: 9.3 W
  • Electrical endurance (number of cycles): 2000
  • Mechanical endurance (number of cycles): 2000
  • Number of wires: 1 / 16 mm²
  • Number of wires - stranded: 1 / 25 mm²
  • Operating temperature: -25 to 40 °C
  • Storage temperature: -25 to 70 °C
  • Installed product height: 83 mm
  • Installed product width: 35 mm
  • Installed product depth: 68 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Earth Leakage
Number of Poles
2
Voltage
230 V
Nominal Voltage
25 A
Leakage Current
30 mA
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type A
