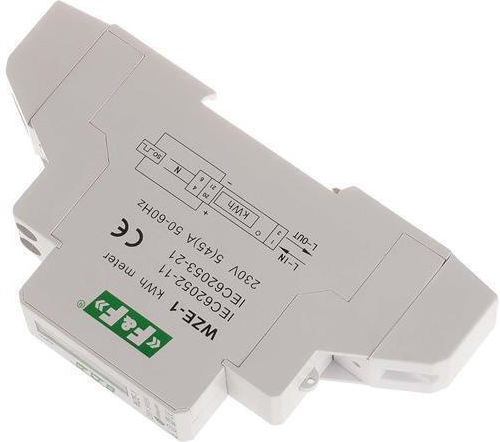

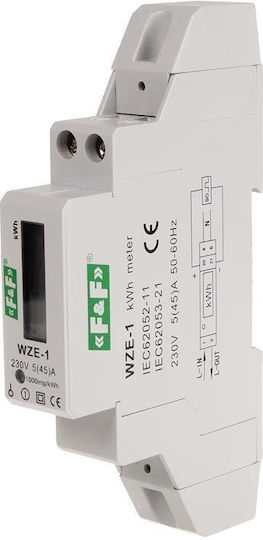

The F&F WZE-1 digital single-phase kilowatt-hour meter measures the active energy consumed, with direct measurement and connection. The display is digital, and the pulse output is electrical, type S0.
- Meter type: Electronic
- Number of phases: Single-phase
- Maximum current: 45 A
- Reference current: 5 A
- Accuracy class: B
- Measurement: Direct
- Energy measured: Active energy
- Pulse rate: 1000 Imp/kWh (kvarh)
- Number of tariffs: 1
- Tariff type: Single-tariff
- Nominal voltage: 2 × 230 V
- Nominal operating frequency: 50 Hz
- Pulse output: Electrical, type S0
- Mounting: On DIN rail (REG/DRA)
- Connection: Direct
- Protection rating: IP20
- Width: 1 module
- Version: Modular
- Type
- Kilowatt meter
- Display Type
- Digital
- Number of Phases
- Single-phase
- Maximum Current
- 45 A
