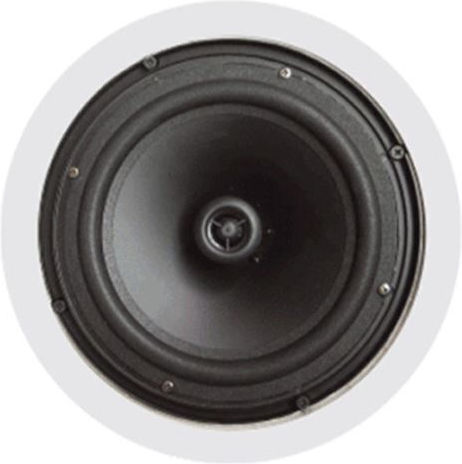

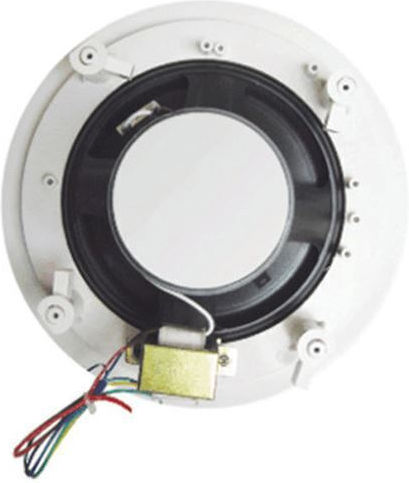

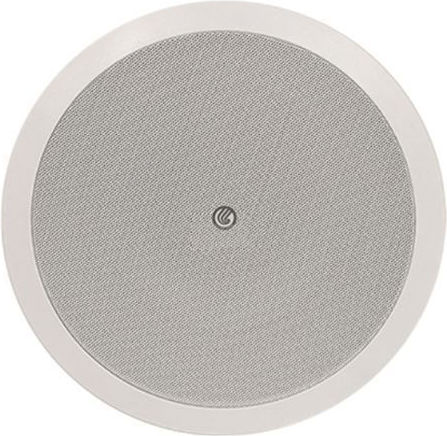

Coaxial ceiling speaker with optional Dome High Performance 2-way speaker. It features a heavy-duty fire dome and a power selection switch, suitable for music applications.
Features:
- MODEL: CP-521T, CH-521TH, CP-621T, CP-621TH, CP-821T, CP-821TH
- Power at 100V: 20 / 10 / 5 / 2.5W, 8 Ohm | 30 / 15 / 7.5 / 3.8W, 8 Ohm | 40 / 20 / 10 / 5W, 8 Ohm
- Power at 70V: 10 / 5 / 2.5 / 1.25W, 8 Ohm | 15 / 7.5 / 3.8 / 1.9W, 8 Ohm | 20 / 10 / 5 / 2.5W, 8 Ohm
- SPL (1W/1M): 88dB
- Max SPL@1M: 101dB, 102dB, 103dB
- Frequency Response: 100Hz-20KHz, 90Hz-20KHz, 50Hz-20KHz
- Cutout Size: Dia 170mm, Dia 200mm, Dia 240mm
- Product Size: Dia 203x80mm(H), Dia 230x90mm(H), Dia 270x105mm(H)
- Installation: Inceiling
- Enclosure Material: ABS
- Weight: 1.25Kg, 1.70Kg | 1.60Kg, 2.20Kg | 2.10Kg, 3.1Kg
- Finish: White
- Speakers: 1” x 1 (TREBLE), 5.25” x 1 (BASS) | 1” x 1 (TREBLE), 6” x 1 (BASS) | 1” x 1 (TREBLE), 8” x 1 (BASS)
- Product Number
- CP-621T
Technical Specifications
- Power (RMS)
- 5 W
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 88 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
