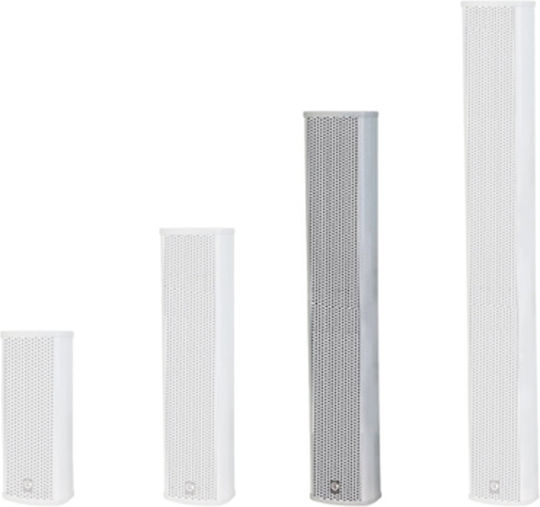

Installation Speaker Specifications
- Model: LM-210, LM-220, LM-230
- Power at 100V: 5/10W, 10/20W, 15/30W
- Power at 70V: 2.5/5W, 5/10W, 7.5/15W
- SPL (1W/1M): 90dB, 90dB, 92dB
- Max SPL@1M: 100dB, 102dB, 104dB
- Frequency Response: 160Hz-16KHz, 160Hz-16KHz, 130Hz-18KHz
- Dispersion: 90°-100 degrees, 90°-110 degrees, 90°-110 degrees
- Product Dimensions: 260x105x75mm, 405x105x75mm, 548x105x75mm
- Installation: Wall mounted
- Cover Material: Aluminum
- Weight: 1.30kg, 2.00kg, 2.70kg
- Finish: White
- Speakers: 2.5”x2 Full range, 2.5”x4 Full range, 2.5”x6 Full range
- Product Number
- LM-230
Technical Specifications
- Sensitivity
- 90 dB
Main Specifications
- Placing
- Wall
- Quantity
- Piece
- Colour
- White
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
