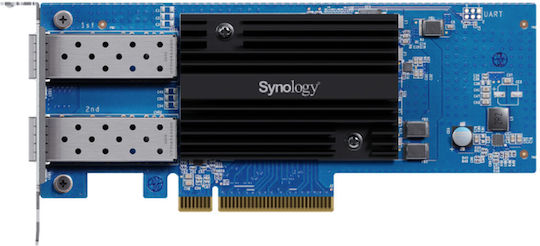

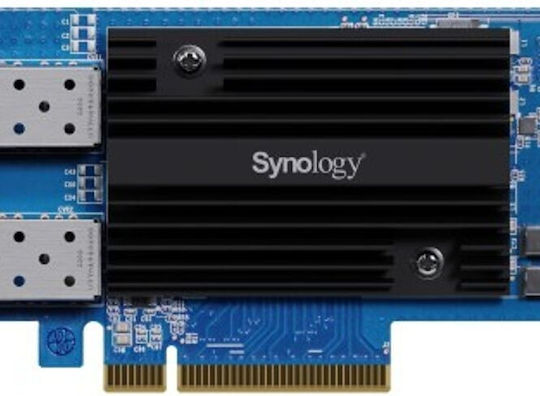

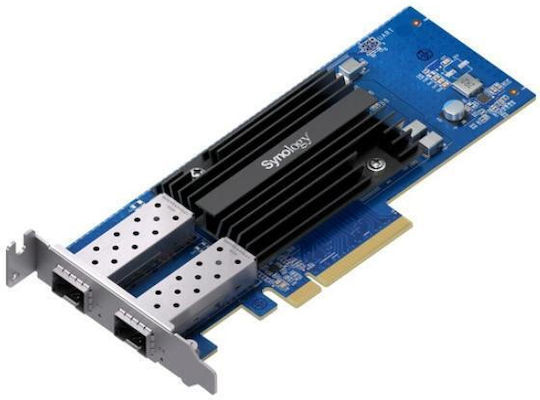

The Synology E25G30-F2 internal network card connects to a PCI Express 3.0 x8 slot and provides two Ethernet ports with SFP28 connectors. It supports IEEE 802.3ae, IEEE 802.3by, and IEEE 802.3ad standards, as well as Jumbo Frames.
- Type: Internal network card
- Host interface: PCI Express 3.0 x8
- Connectivity: Wired Ethernet
- Ethernet ports: 2
- Fibre optic connectors: SFP28
- Data transfer rate: 25 Gbps
- Maximum data transfer rate: 3125 Mbit/s
- Communication standards: IEEE 802.3ae, IEEE 802.3by, IEEE 802.3ad
- Jumbo Frames support: Yes
- Maximum Jumbo Frame size: 9
- Card form factor: Full height, Low Profile
- Colour: Blue
- Width: 168 mm
- Height: 69 mm
- Depth: 17.3 mm
- Operating temperature: 0–40 °C
- Storage temperature: -20–60 °C
- Operating relative humidity: 5–95%
- Product Number
- E25G30-F2
- Type
- PCIe
- Connectivity
- Ethernet
- Number of Ports
- -
- Low Profile
- Yes
