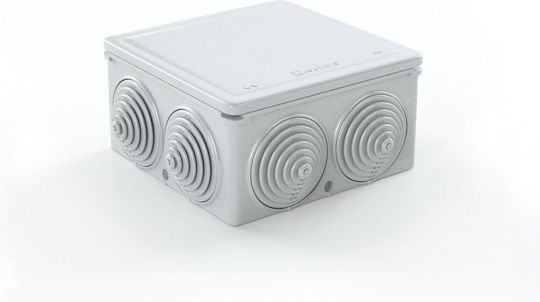

Square Junction Box CONDUR Ø16/20

Features:

• Field of Application: Intended for surface electrical installations.
• Applicable Standards: EN 60670-22, EN 50642
• Compliance Guidelines: 2014/35/EU (LVD), 2011/65/EU (RoHS)
• Color: RAL 7035 Light Grey
• Ingress Protection Rating: IP 55
• The special stepped plugs facilitate cable entry into the box.
• The snap-on lids ensure waterproofing and contribute to reducing installation time.
• At the base, there are 4 knock-out entries sized Ø20 to Ø32 for pipes or cables.
• The removal is done using an additional tool.
• On each side, there are special guides for horizontal/vertical alignment.
• Provision for drainage when required by electrical installation needs.
• The construction materials are self-extinguishing and do not propagate flames, with heat resistance up to 650°C.
• Inside, there are ports for installing additional suspension accessories.
• The permissible operating voltage can be up to 800V.
• Does not emit toxic or corrosive gases in case of fire.
• Incorporates anti-static technology that protects against static electricity.
• Primary Material: PS (the lids and rubber plugs are made of PE)
• Temperature Resistance Range: -25°C to +60°C
• Flame Spread Resistance: Does not propagate flames
• Number of Holes: 7
• Type of Holes: Rubber stepped plugs
• Ingress Protection: IP 55
• Number of Detachable Outputs: 4
• Pipe Alignment: Yes
• Drainage Opening: Yes
• Heat Resistance: 650°C
• Voltage: 800V
• Aging Resistance: Yes
• Halogen-free: Does not emit toxic and corrosive gases.
• Anti-static Technology: Protection from static electricity.
