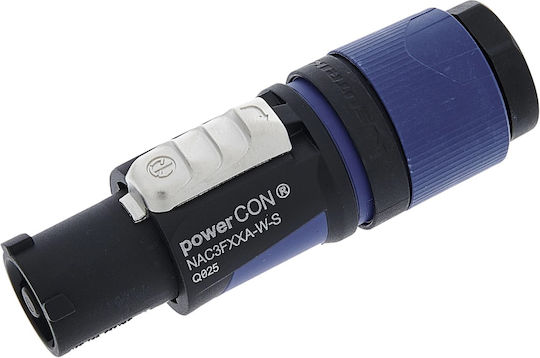

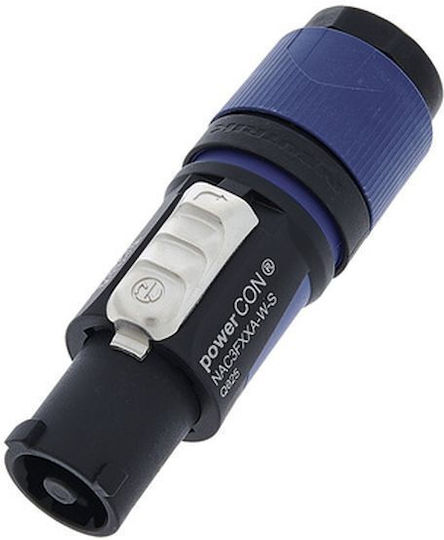

Neutrik Plug Speakon female Blue (NAC3FXXA-W-S)
Plugs

Neutrik Plug Speakon female Blue (NAC3FXXA-W-S)

The Neutrik NAC3FXXA-W-S is a single-phase AC power connector with a powerCON connection and female contacts. It is suitable for cables with a diameter of 6–12 mm and features a twist-lock mechanism...

The Neutrik NAC3FXXA-W-S is a single-phase AC power connector with a powerCON connection and female contacts. It is suitable for cables with a diameter of 6–12 mm and features a twist-lock mechanism and screw terminals.

  • Connection: powerCON
  • Contact type: Female
  • Color: Blue
  • Type: Single-phase AC power connector
  • Rated current and voltage: 16 A, 250 V AC
  • ...
See full description See full description
7 80 €
Delivery Thursday, 19 November
4,50 € shipping cost
Sent from Greece
From Prostage 5.0 (5)
5.0 (5 reviews)
Greece
12 pieces
See Electronics on the page of Prostage

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.
What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

The Neutrik NAC3FXXA-W-S is a single-phase AC power connector with a powerCON connection and female contacts. It is suitable for cables with a diameter of 6–12 mm and features a twist-lock mechanism and screw terminals.

  • Connection: powerCON
  • Contact type: Female
  • Color: Blue
  • Type: Single-phase AC power connector
  • Rated current and voltage: 16 A, 250 V AC
  • Electrical contacts: 2 + PE
  • Cable diameter: 6–12 mm
  • Cable cross-section: 1.5–2.5 mm²
  • Locking mechanism: Twist-lock
  • Termination: Screw terminals
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: > 3 kVac
  • Insulation resistance: > 10 GΩ
  • Service life: Typically 5,000 mating cycles
  • Contact plating: Silver
  • Contact material: Copper alloy
  • Insert material: Polyamide (PA6.6)
  • Locking element material: Die-cast zinc
  • Housing material: Polyamide (PA6) / TPE
  • Cable clamp material: Polyketone
  • Ring material: Polypropylene / TPE
  • Temperature range: -33 °C to +80 °C
  • Ingress protection rating: IP20
  • Flammability rating: UL94 V-0
  • Quantity: 1
