Hager Phase Relay Earth Leakage 16A Bipolar with Voltage 500V
Phase Relays

Hager Phase Relay Earth Leakage 16A Bipolar with Voltage 500V

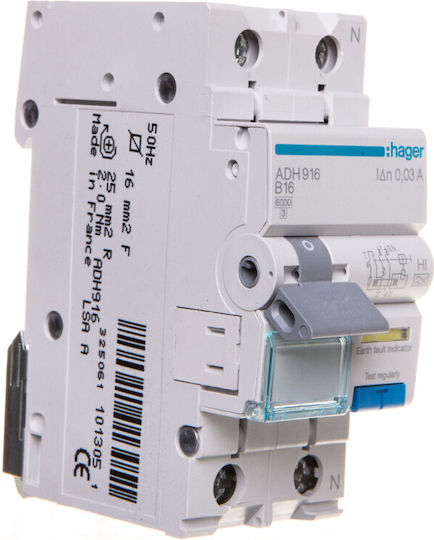

Residual current circuit breaker 2P 16A B 0.03A type A-Hi (ADH916)

  • Rated current: 16A
  • Circuit breaker type: B
  • Rated short-circuit breaking capacity: 6kA
  • Residual current circuit breaker type: HI
  • ...

Residual current circuit breaker 2P 16A B 0.03A type A-Hi (ADH916)

  • Rated current: 16A
  • Circuit breaker type: B
  • Rated short-circuit breaking capacity: 6kA
  • Residual current circuit breaker type: HI
  • Rated residual current: 30mA
  • Number of poles: 2P
  • Number of modules: 2
  • Nominal insulation voltage: 500V
  • Nominal impulse withstand voltage: 4000V
  • Rated frequency:...
See Description & Specifications See Description & Specifications
172 65 €
173 Coins 173 Coins
Delivery Fri, 06 Nov - Tue, 10 Nov
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Getters 4.6 (110)
4.6 (110 reviews)
Greece
6 pieces
See Electrical Panel Supplies on the page of Getters
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Questions
Review the product
Product report

Description & Specifications

Residual current circuit breaker 2P 16A B 0.03A type A-Hi (ADH916)

  • Rated current: 16A
  • Circuit breaker type: B
  • Rated short-circuit breaking capacity: 6kA
  • Residual current circuit breaker type: HI
  • Rated residual current: 30mA
  • Number of poles: 2P
  • Number of modules: 2
  • Nominal insulation voltage: 500V
  • Nominal impulse withstand voltage: 4000V
  • Rated frequency: 50Hz
  • Connection type: screw
  • Tightening torque: 2.1Nm
  • Total power loss at rated current: 5.2W
  • Electrical endurance (number of cycles): 2000
  • Mechanical endurance (number of cycles): 2000
  • Number of wires: 1 / 16mm²
  • Number of wires - conductor: 1 / 25mm²
  • Operating temperature: -25 to 40 °C
  • Storage temperature: -25 to 70 °C
  • Height of installed product: 83mm
  • Width of installed product: 35mm
  • Depth of installed product: 68mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Earth Leakage
Number of Poles
2
Voltage
500 V
Nominal Voltage
16 A
Leakage Current
30 mA
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
