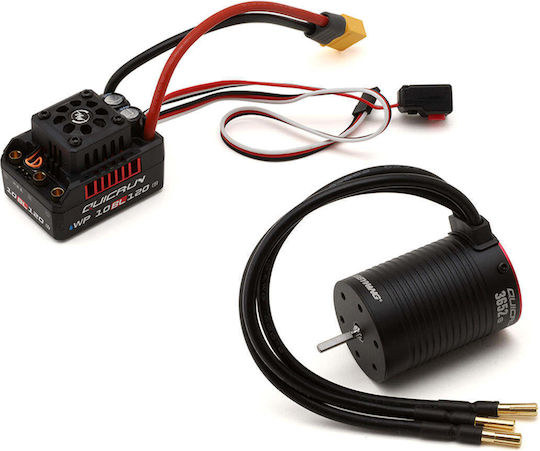

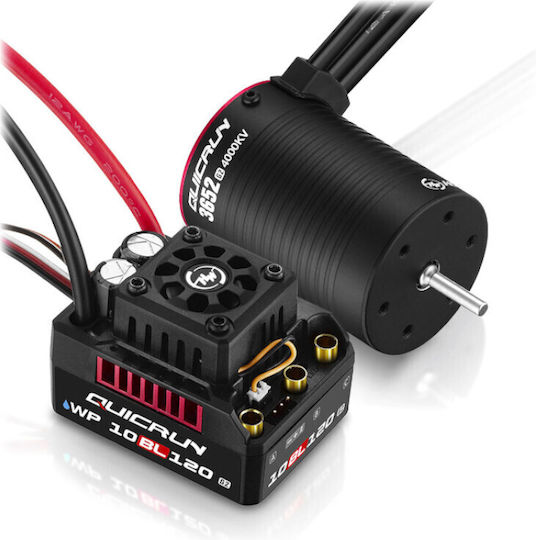

Hobbywing Quicrun 10BL 120A ESC & Motor Combo

The Quicrun 10BL120 G2 Sensorless Brushless ESC and motor combo is designed to deliver exceptional power and reliability with a more efficient, dust-protected motor and IP-67 certified waterproof ESC. The built-in capacitor of the 10BL enhances short-circuit protection, efficiency, and thermal protection. This combo is an excellent choice for a wide range of RC models.

Features:

• G2 QuicRun 10BL120
• Smart Free Flow Technology
• Extreme performance
• Powerful built-in BEC
• Efficient cooling system
• Thermal capacitor protection
• Built-in capacitor
• IP-67 waterproof rating

• G2 QuicRun 3660SL
• High performance for more power at lower temperatures
• 4-pole design for more torque with strong explosive forces
• Performance and efficiency have increased by over 10% compared to the previous generation of motors
• Features iron grooves of 0.2mm, a high-strength stamped rotor, and high-temperature resistant winding content
• High precision and quality ball bearings

Specifications:

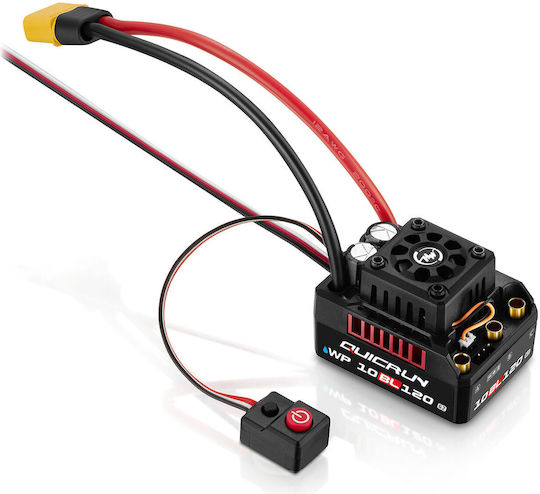

• ESC:
• Scale: 1/10
• Brushless
• Sensorless
• Waterproof: IP-67
• Continuous current: 120A
• Peak: 760A
• Input voltage: 2-4S LiPo
• BEC output: 6V/7.4V @ 5A
• Output connectors: 4.0mm Bullets
• Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
• Weight: 4.19oz (119g)

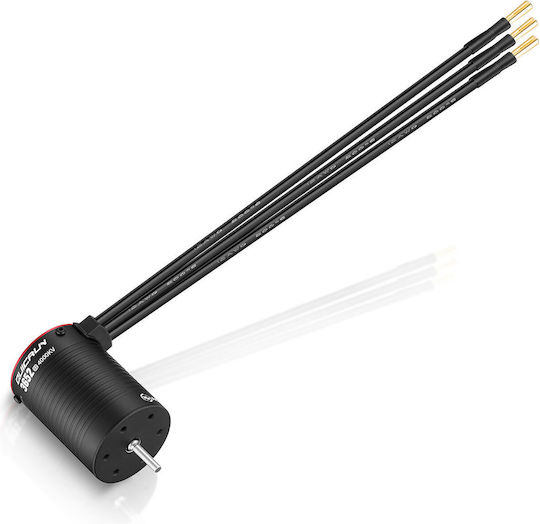

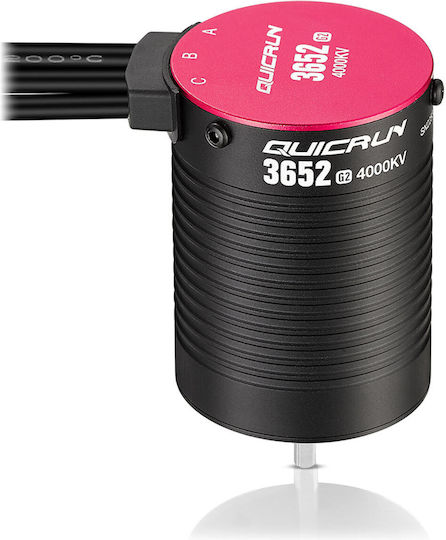

• Motor:
• Input voltage: 2S-3S LiPo
• KV: 4000kV
• Poles: 4
• Motor diameter: 1.42" (36mm)
• Motor length: 2.05" (52mm)
• Shaft diameter: 0.13" (3.175mm)
• Shaft length: 0.59" (15mm)
• Front bearing size: D13*D5*T5
• Rear bearing size: D13*D5*T4
• Weight: 224g

Includes:

• (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
• (1) QuicRun 3652SL G2 Sensorless Brushless Motor (4000kV)
