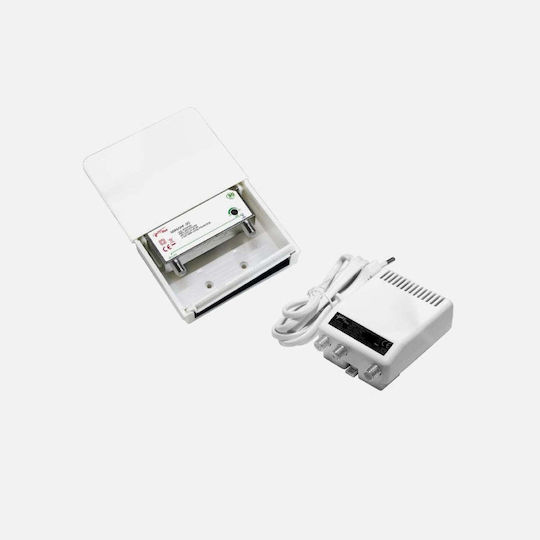

The GBS Elettronica JL45497/5G mast amplifier kit amplifies UHF signals in the 470–694 MHz band and includes a built-in 5G filter for the 694–862 MHz band. Its gain is adjustable from 15 to 30 dB, and its maximum output signal level is 107 dBμV. The amplifier head has one antenna input and one output, while the power supply has two distribution outputs.

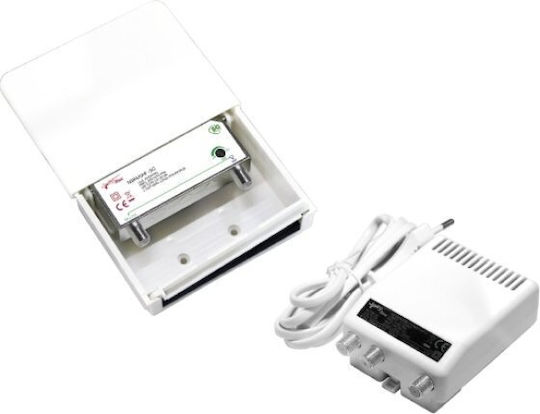

The power supply connects to the 230 Vac mains and provides +12 Vdc to the amplifier head via coaxial cable, with a maximum current of 200 mA. The kit includes an amplifier head and a power supply with F connectors.
- Type: UHF mast amplifier
- UHF frequency: 470–694 MHz
- 5G filter: 694–862 MHz
- Gain: Adjustable from 15 to 30 dB
- Amplifier inputs: 1
- Amplifier outputs: 1
- Maximum output signal level: 107 dBμV
- Amplifier connection: F
- Power supply outputs: 2
- Power supply connection: F
- Power supply attenuation: 4 dB
- Mains voltage: 230 Vac
- Output voltage: +12 Vdc
- Maximum current: 200 mA
- Package contents: Amplifier head and power supply
- Type
- Mast Amplifier
